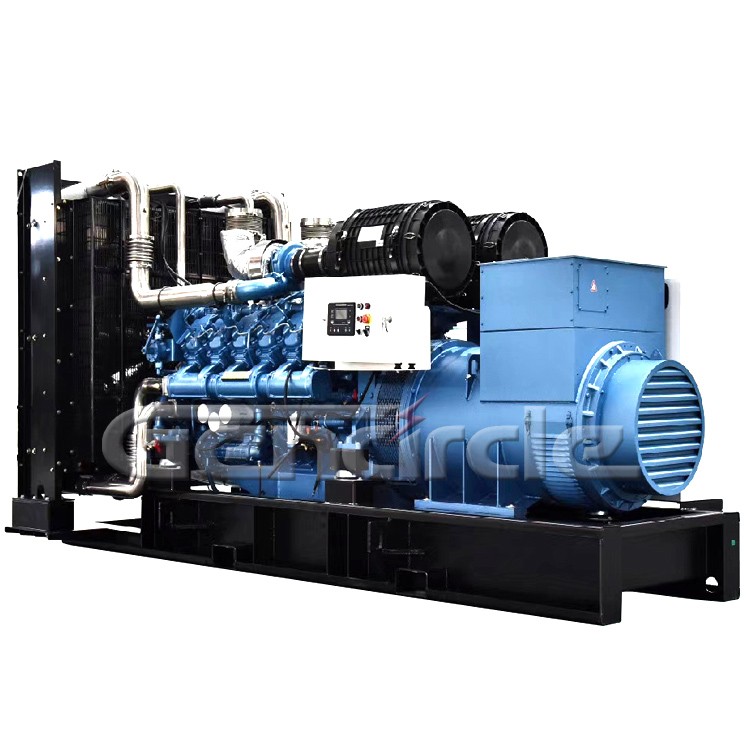

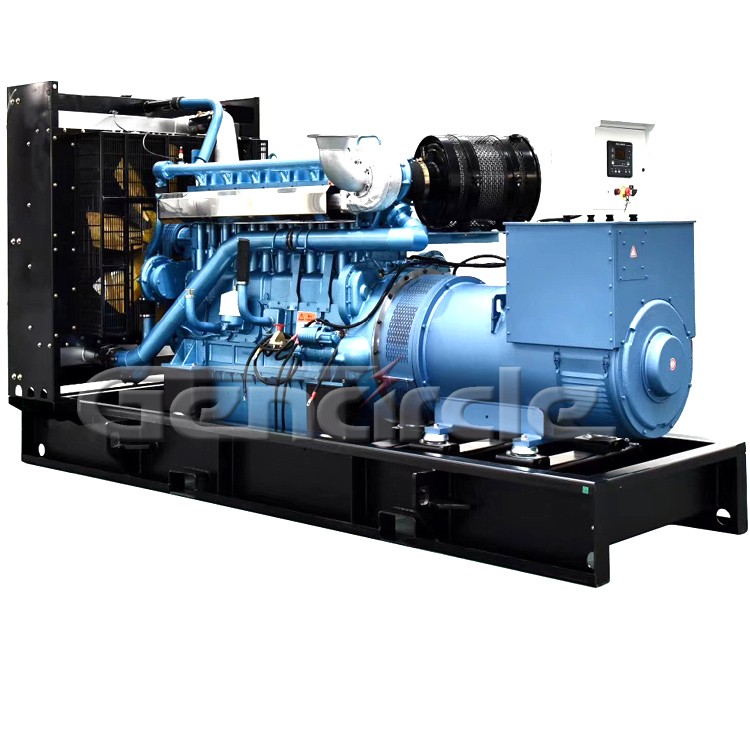

Powered by WEICHAI Diesel Generator Set

Output: 20kVA - 1400KVA
Engine: Powered by WEICHAI Diesel engine
Alternator: Stamford, Leroy Somer, Mecc alte
Frequency: 50Hz/60Hz
Voltage: 220/380V, 230/400V, 240/416V (optional other voltage)
Frmae: optional Open type / Silent type / Container type / Trailer type
Standard: ISO, CE
Control system: Deep sea, Smartgen , ComAp

Reliability quality and performance

Famous diesel engine

Warranty on global

Diesel generator set Silent / Soundproof type / Open type / Trailer type

Safety – Stability – Economy - Sufficient power

1. Our cooperate with famous diesel engine –Powered by Cummins Perkins Deutz Doosan volvo shanghai weichai Isuzu Yanmar Kubota Honda Yamaha Ricardo Yuchai LovoL Fawde Quanchai Yangdong Mitsubishi.

2. Equipped with famous Brushless alternator – Optional Stamford, Leroy Somer, Mecc alte.

3. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working

4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,

5. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM

6. Equipped with high density sound-absorbing material -- sound insulation, fireproofing

7. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.

8. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.

9. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker

10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.

11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance

12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.

13. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.

Diesel generator set Silent / Soundproof type / Open type / Trailer type

Our gensets compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard

Prime output power: 2KVA - 4000 KVA

Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc.

Phase/connecting: 3 phase, 4wire.

Rated frequency: 50Hz@1500rpm, 60Hz@1800rpm

Alternator excited type: Brushless, self excited or PMG

Insulation: Class H

Protection: IP21~IP23

Voltage regulation: AVR automatic control 1%

Altitude above sea level: ≤1000 meters

Ambient air temperature: ≤40°C

Relative air humidity: ≤ 90%

Warranty policy

Our product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator.

Specifications:

Model	400V / 50Hz / 1500RPM				WEICHAI Diesel Engine					Alternator
	Standby output		Prime Output		Model	No. of Cylinder	Governor	Bore×Stroke	Displacement	Brushless
	KVA	KW	KVA	KW	Model	No. of Cylinder	Governor	(MM)	(L)	Brushless
WP-22	22	17.6	20	16	WP2.3D25E200	4L	Mechanical	90×100	2.5	WP184D
WP-28	27.5	22	25	20	WP2.3D33E200	4L	Mechanical	102×118	2.5	WP184FS
WP-33	33	26.4	30	24	WP2.3D33E200	4L	Mechanical	102×118	2.5	WP184G
WP-41	41	33	37.5	30	WP2.3D40E200	4L	Mechanical	105×125	2.5	WP184H
WP-50	50	40	45	36	WP2.3D48E200	4L	Mechanical	105×125	2.5	WP224C
WP-55	55	44	50	40	WP4.1D66E200	4L	Mechanical	105×130	4.5	WP224D
WP-70	69	55	62.5	50	WP4.1D66E200	4L	Mechanical	105×130	4.5	WP224E
WP-83	83	66	75	60	WP4.1D80E200	4L	Mechanical	105×130	4.5	WP224G
WP-100	100	80	90	72	WP4.1D100E200	4L	Mechanical	105×130	4.5	WP224G1
WP-110	110	88	100	80	WP4.1D100E200	4L	Mechanical	105×130	4.5	WP274C
WP-125	125	100	114	91	WP6D132E200	6L	Mechanical	105×130	6.75	WP274D
WP-138	137.5	110	125	100	WP6D132E200	6L	Mechanical	105×130	6.75	WP274D1
WP-165	165	132	150	120	WP6D152E200	6L	Mechanical	105×130	6.75	WP274F
WP-206	206	165	187.5	150	WP10D200E200	6L	Mechanical	126×130	9.726	WP274H
WP-250	250	200	225	180	WP10D238E200	6L	Mechanical	126×130	9.726	WP274J
WP-275	275	220	250	200	WP10D264E200	6L	Mechanical	126×130	9.726	WP274K
WP-344	344	275	313	250	WP12D317E200	6L	Mechanical	126×155	11.596	WP444E
WP-420	420	336	380	304	WP13D385E200	6L	Mechanical	127×165	12.54	WP444FS
WP-440	440	352	400	320	WP13D385E200	6L	Mechanical	127×165	12.54	WP444F
WP-500	500	400	450	360	6M26D447E200	6L	Electric	150×150	15.9	WP544C
WP-550	550	440	500	400	6M26D484E200	6L	Electric	150×150	15.9	WP544D
WP-660	660	528	600	480	6M33D572E200	6L	Electric	150×185	19.6	WP544E
WP-688	687.5	550	625	500	6M33D605E200	6L	Electric	150×185	19.6	WP544FS
WP-825	825	660	750	600	12M26D792E200	12V	Electric	150×150	31.8	WP634B
WP-880	880	704	800	640	12M26D792E200	12V	Electric	150×150	31.8	WP634C
WP-1000	1000	800	910	728	12M26D902E200	12V	Electric	150×150	31.8	WP634D
WP-1100	1100	880	1000	800	12M26D968E200	12V	Electric	150×150	31.8	WP634E
WP-1250	1250	1000	1150	920	12M33D1108E200	12V	Electric	150×185	39.2	WP634F
WP-1400	1400	1120	1250	1000	12M33D1210E200	12V	Electric	150×185	39.2	WP634G
