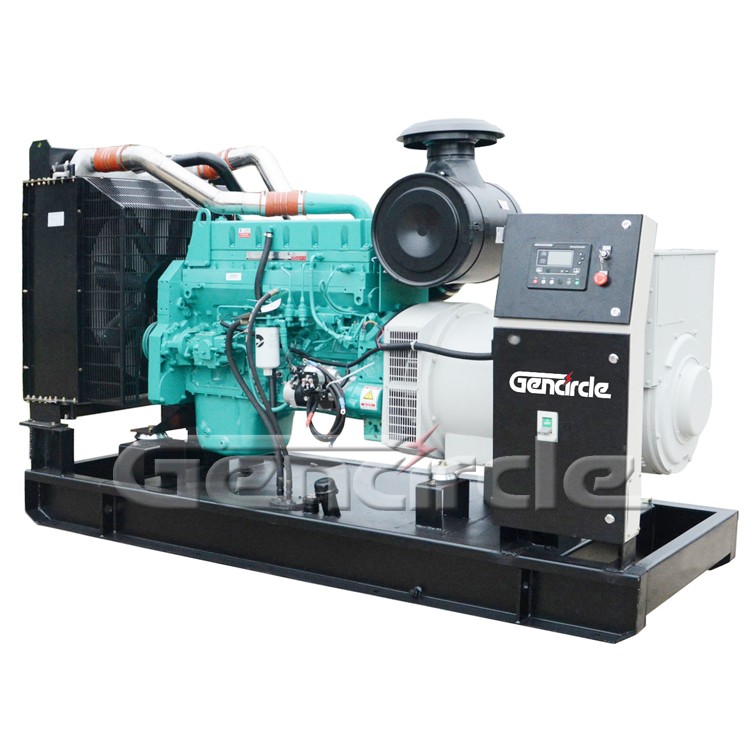

Powered by Cummins Diesel Generator 60Hz

Powered by Cummins Diesel Generator 60Hz

Output:20kVA - 1650KVA
Engine: Powered by Cummins engine
Alternator: Stamford, Leroy Somer, Mecc alte
Frequency: 50Hz/60Hz
Voltage: 220/380V, 230/400V, 240/416V (optional other voltage)
Frmae: optional Open type / Silent type / Container type / Trailer type
Standard: ISO, CE
Control system: Deep sea, Smartgen , ComAp

Reliability quality and performance

Famous diesel engine

Warranty on global

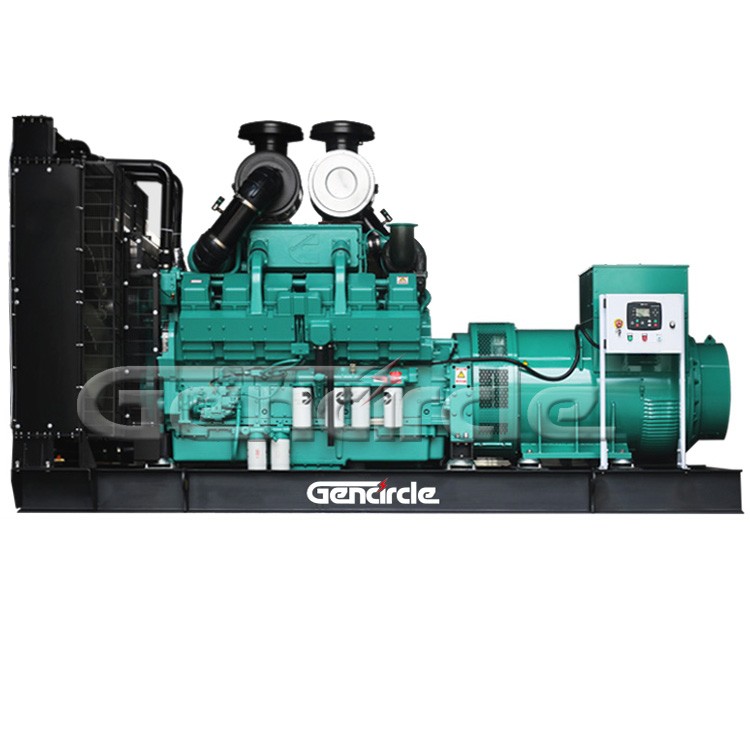

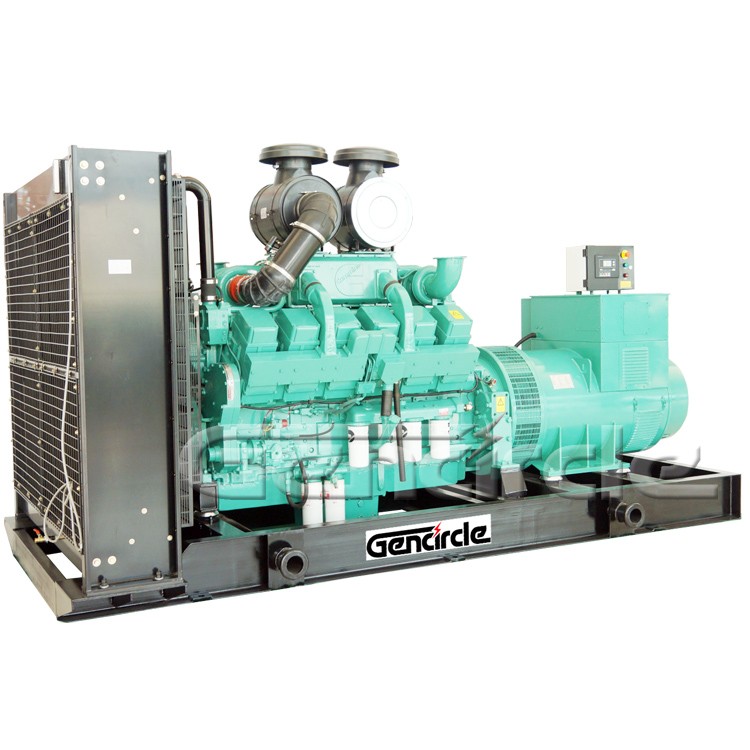

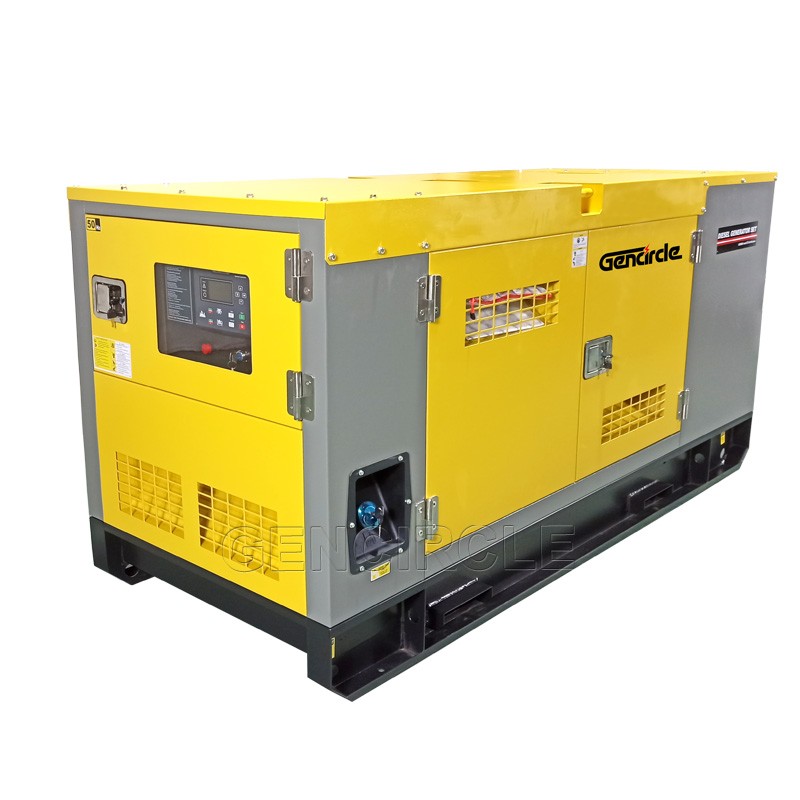

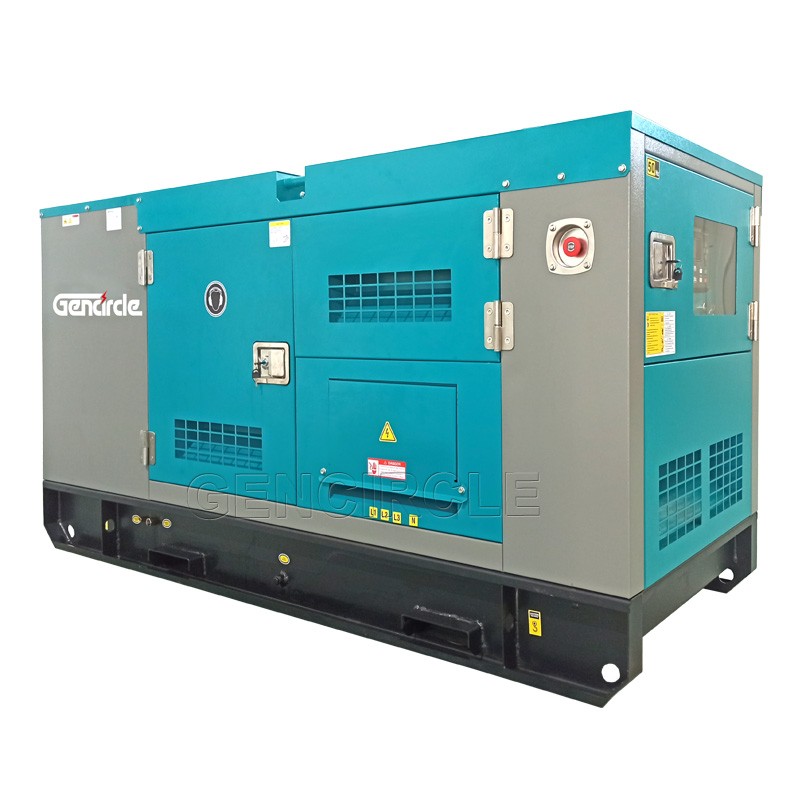

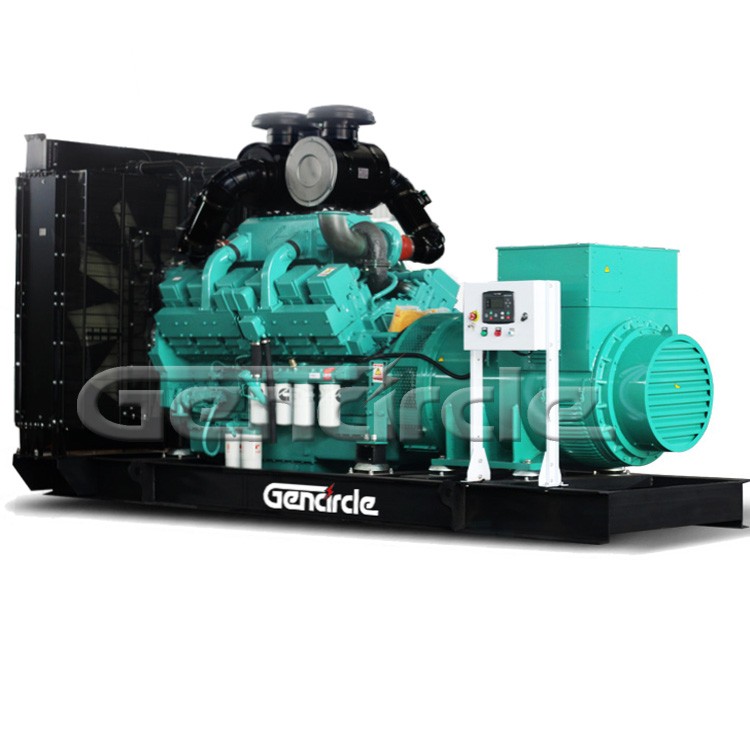

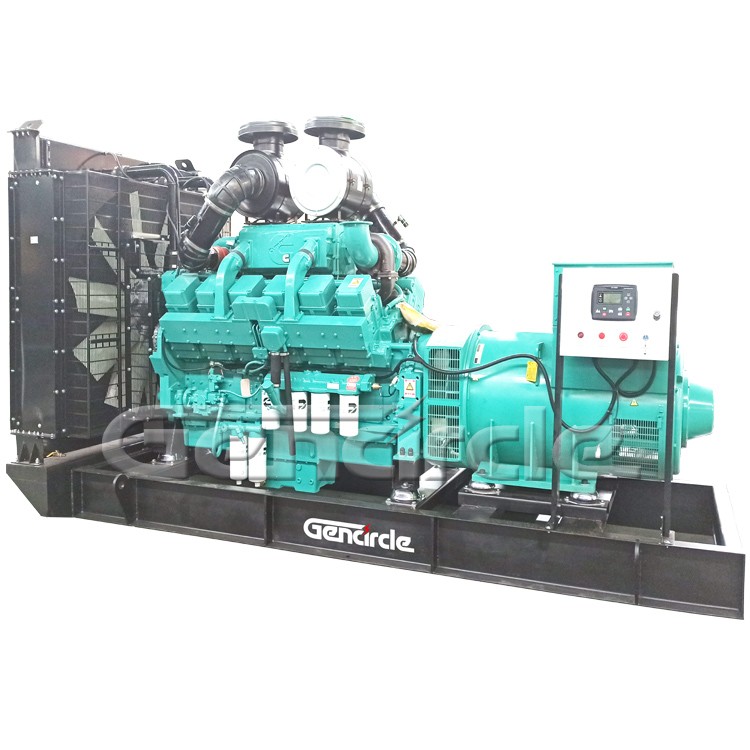

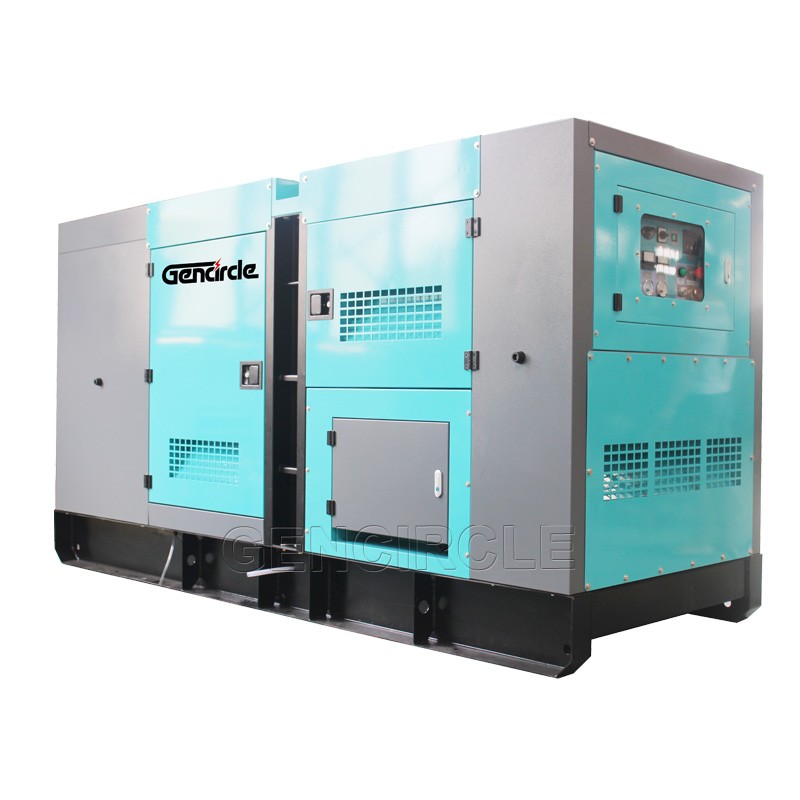

Diesel generator set Silent / Soundproof type / Open type / Trailer type

Safety – Stability – Economy - Sufficient power

1. Our cooperate with famous diesel engine –Powered by Cummins Perkins Deutz Doosan volvo shanghai weichai Isuzu Yanmar Kubota Honda Yamaha Ricardo Yuchai LovoL Fawde Quanchai Yangdong Mitsubishi.

2. Equipped with famous Brushless alternator – Optional Stamford, Leroy Somer, Mecc alte.

3. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working

4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,

5. Generator set use High-quality steel are thickness canopy -- 2MM to 10MM

6. Equipped with high density sound-absorbing material -- sound insulation, fireproofing

7. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.

8. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.

9. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker

10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.

11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance

12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.

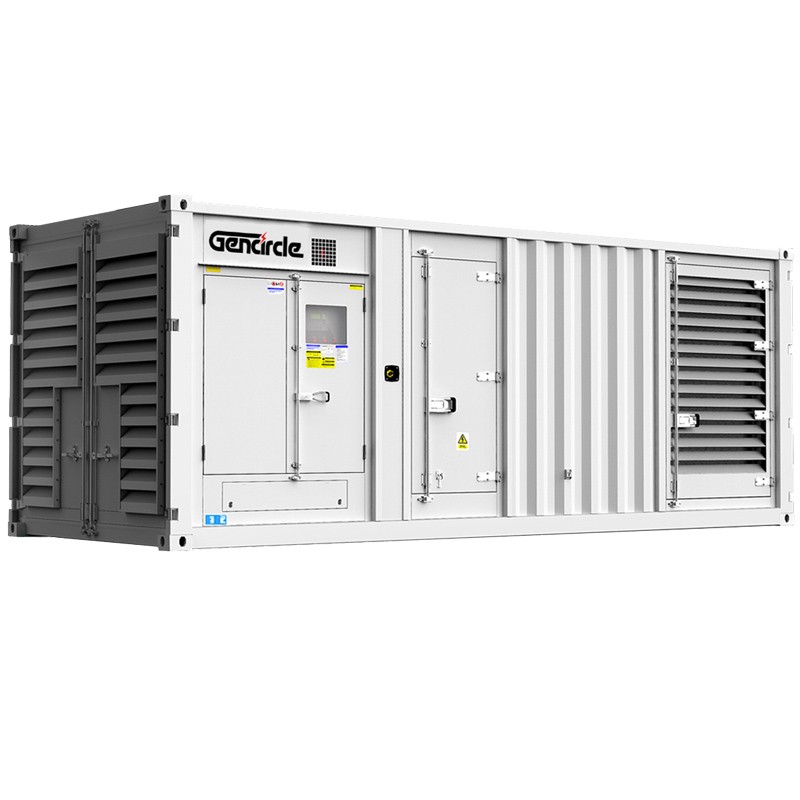

13. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.

Diesel generator set Silent / Soundproof type / Open type / Trailer type

Our gensets compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard

Prime output power: 2KVA - 4000 KVA

Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc.

Phase/connecting: 3 phase, 4wire.

Rated frequency: 50Hz@1500rpm, 60Hz@1800rpm

Alternator excited type: Brushless, self excited or PMG

Insulation: Class H

Protection: IP21~IP23

Voltage regulation: AVR automatic control 1%

Altitude above sea level: ≤1000 meters

Ambient air temperature: ≤40°C

Relative air humidity: ≤ 90%

Warranty policy

Our product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator.

Specifications:

Model	416V/ 60Hz / 1800RPM				Cummins Diesel Engine				Alternator
	Standby Power		Prime Power		Model	No. of Cylinder	Displacement	Bore×Stroke	Stamford
	KVA	KW	KVA	KW	Model	No. of Cylinder	(L)	(MM)	Stamford
C-23	23	18	20	16	4B3.9-G11	4L	3.9	102ˣ120	SOL2-G
C-25	25	20	23	18	4B3.9-G11	4L	3.9	102ˣ120	SOL2-M
C-28	28	22	25	20	4B3.9-G11	4L	3.9	102ˣ120	SOL2-M
C-33	33	26	30	24	4B3.9-G2	4L	3.9	102ˣ120	SOL2-P
C-38	38	30	35	28	4B3.9-G12	4L	3.9	102ˣ120	S1L2-J
C-44	44	35	40	32	4BT3.9-G2	4L	3.9	102ˣ120	SIL2-K
C-55	55	44	50	40	4BTA3.9-G2	4L	3.9	102ˣ120	S1L2-R
C-66	66	53	63	50	4BTA3.9-G2	4L	3.9	102ˣ120	S1L2-Y
C-80	80	64	73	58	4BTA3.9-G11	4L	3.9	102ˣ120	UCI224F
C-96	96	77	88	70	4BTA3.9-G11	4L	3.9	102ˣ120	UCI224G
C-110	110	88	100	80	6BT5.9-G2	6L	5.9	102ˣ120	UCI274C
C-125	125	100	114	91	6BT5.9-G2	6L	5.9	102ˣ120	UCI274D
C-138	138	110	125	100	6BTA5.9-G2	6L	5.9	102ˣ120	UCI274D
C-150	150	120	138	110	6BTAA5.9-G2	6L	5.9	102ˣ120	UCI274E
C-176	176	141	160	128	6BTAA5.9-G12	6L	5.9	102ˣ120	UCI274E
C-200	200	160	180	144	6CTA8.3-G2	6L	8.3	114ˣ135	UCI274F
C-220	220	176	200	160	6CTAA8.3-G2	6L	8.3	114ˣ135	UCI274G
C-250	250	200	225	180	6LTAA8.9-G2	6L	8.9	114ˣ135	UCI274H
C-275	275	220	250	200	6LTAA8.9-G2	6L	8.9	114ˣ135	UCDI274J
C-303	303	242	275	220	6LTAA8.9-G3	6L	8.9	114ˣ145	S4L1S-C
C-344	344	275	313	250	NTA855-G1	6L	14	140ˣ152	S4L1D-D
C-380	380	304	344	275	NTA855-G1B	6L	14	140ˣ152	S4L1D-D
C-413	438	350	394	315	NTA855-G3	6L	14	140ˣ152	S4L1D-E
C-440	440	352	400	320	6ZTAA13-G2	6L	13	130ˣ163	S4L1D-E
C-460	460	368	438	350	6ZTAA13-G2	6L	13	130ˣ163	S4L1D-F
C-500	500	400	450	360	QSZ13-G2	6L	13	130ˣ163	S4L1D-F
C-550	550	440	500	400	QSZ13-G3	6L	13	130ˣ163	S4L1D-G
C-563	563	450	513	410	KTA19-G3	6L	18.9	159ˣ159	S5L1D-C
C-625	625	500	563	450	KTA19-G3A	6L	18.9	159ˣ159	S5L1D-D
C-646	646	517	588	470	KTAA19-G5	6L	18.9	159ˣ159	S5L1D-E
C-688	688	550	625	500	QSKTA19-G4	6L	18.9	159ˣ159	S5L1D-E
C-750	750	600	688	550	QSKTA19-G5	6L	18.9	159ˣ159	S5L1D-E
C-850	850	680	775	620	KTA38-G	12V	37.8	159ˣ159	S5L1D-H
C-963	963	770	875	700	KTA38-G1	12V	37.8	159ˣ159	S6L1D-C
C-1000	1000	800	910	728	KTA38-G2	12V	37.8	159ˣ159	S6L1D-D
C-1038	1038	830	938	750	KTA38-G2B	12V	37.8	159ˣ159	S6L1D-D
C-1100	1100	880	1000	800	KTA38-G2A	12V	37.8	159ˣ159	S6L1D-D
C-1250	1250	1000	1125	900	KTA38-G4	12V	37.8	159ˣ159	S6L1D-E
C-1375	1375	1100	1200	960	QSKTA38-G5	12V	37.8	159ˣ159	S6L1D-F
C-1500	1500	1200	1375	1100	KTA50-G3	16V	50.3	159ˣ159	S6L1D-H
C-1875	1875	1500	1500	1200	KTA50-G9	16V	50.3	159ˣ159	PI734B
