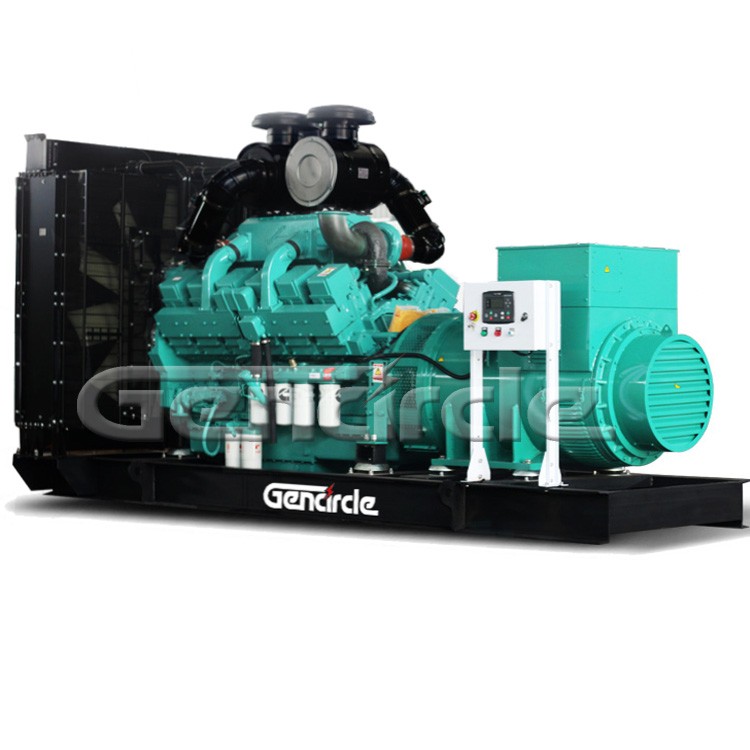

Powered by Cummins Diesel Generator 50Hz

Powered by Cummins Diesel Generator 50Hz

Output:20kVA - 1650KVA
Engine: Powered by Cummins engine
Alternator: Stamford, Leroy Somer, Mecc alte
Frequency: 50Hz/60Hz
Voltage: 220/380V, 230/400V, 240/416V (optional other voltage)
Frmae: optional Open type / Silent type / Container type / Trailer type
Standard: ISO, CE
Control system: Deep sea, Smartgen , ComAp

Reliability quality and performance

Famous diesel engine

Warranty on global

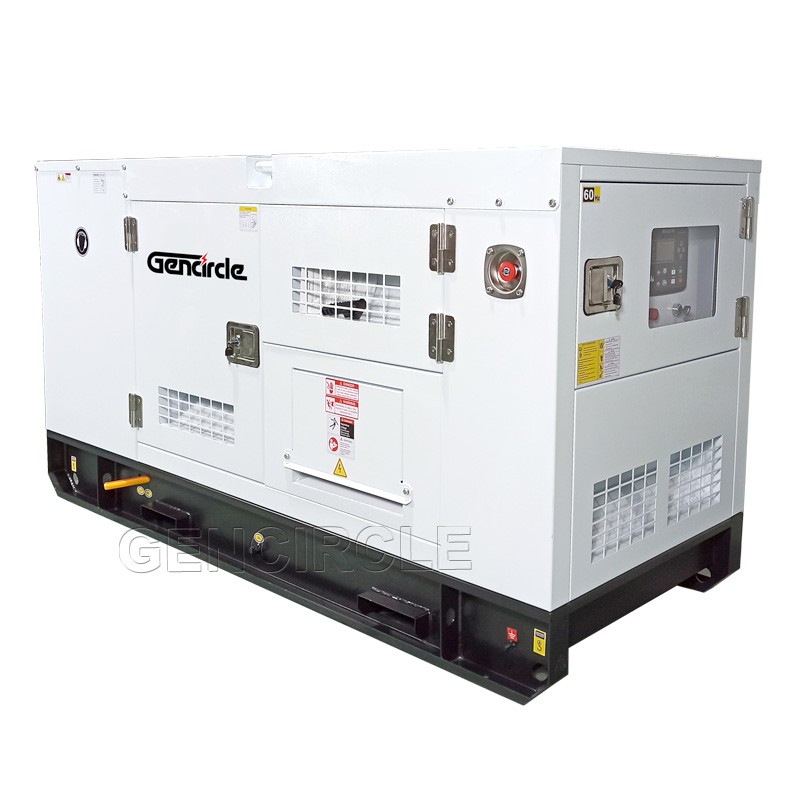

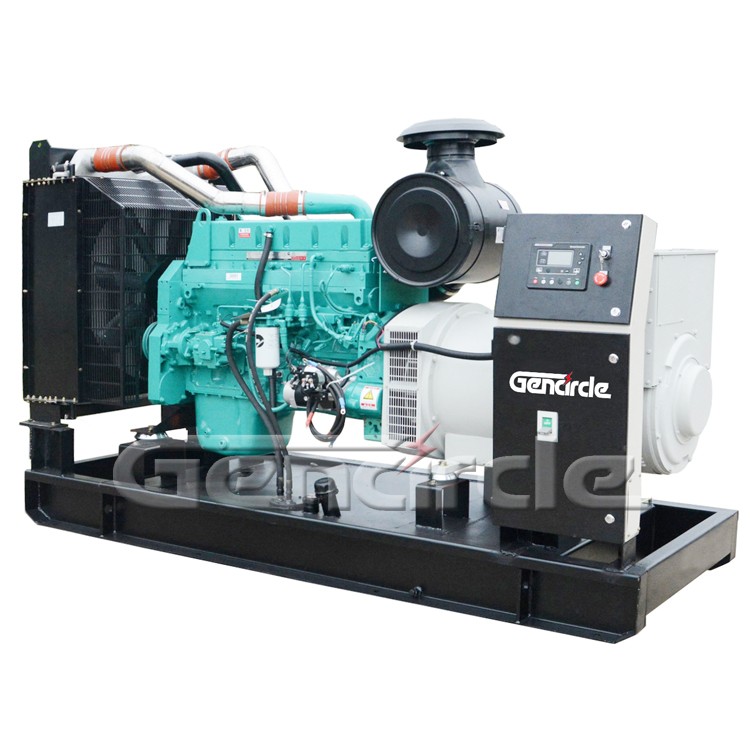

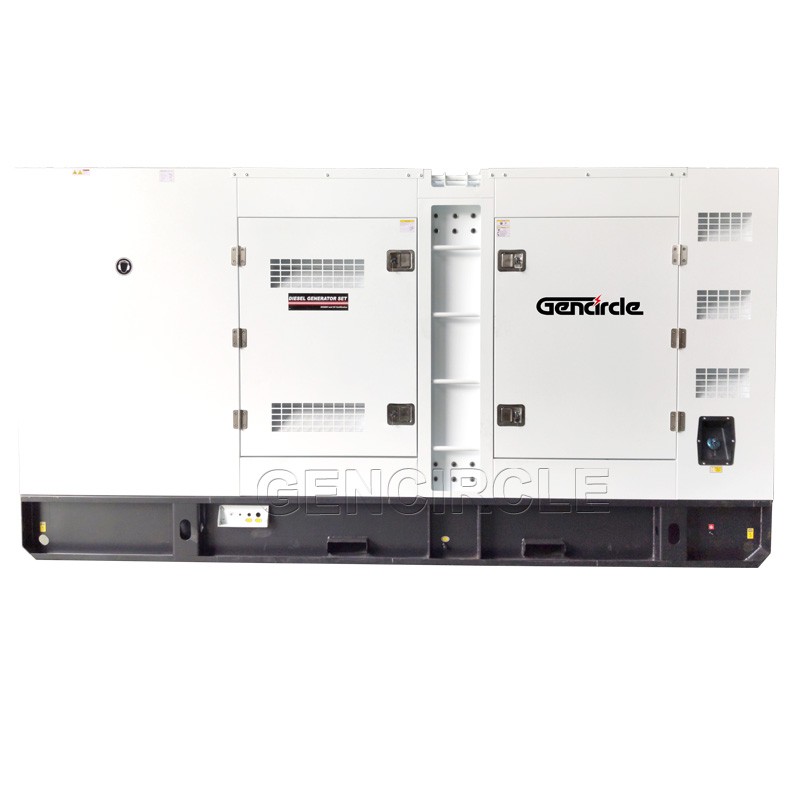

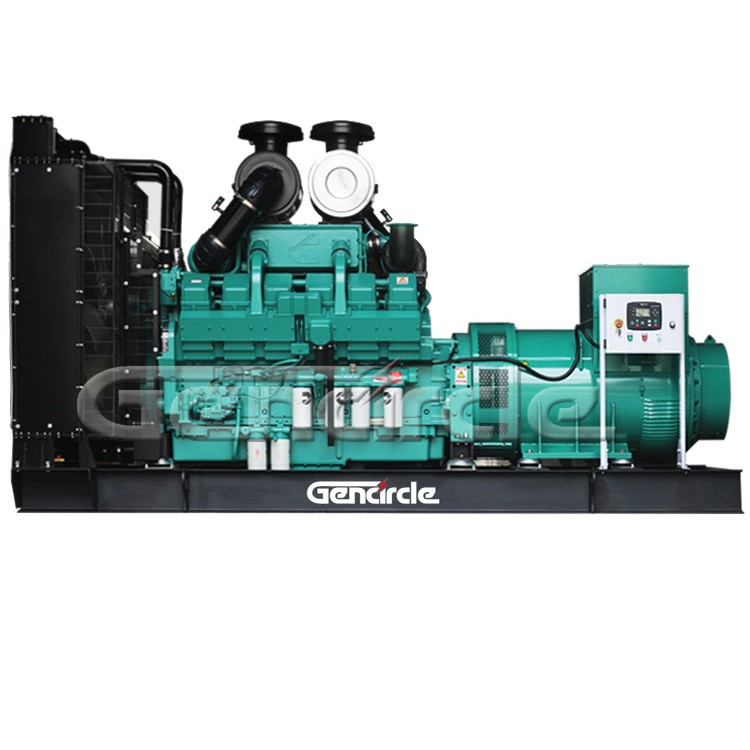

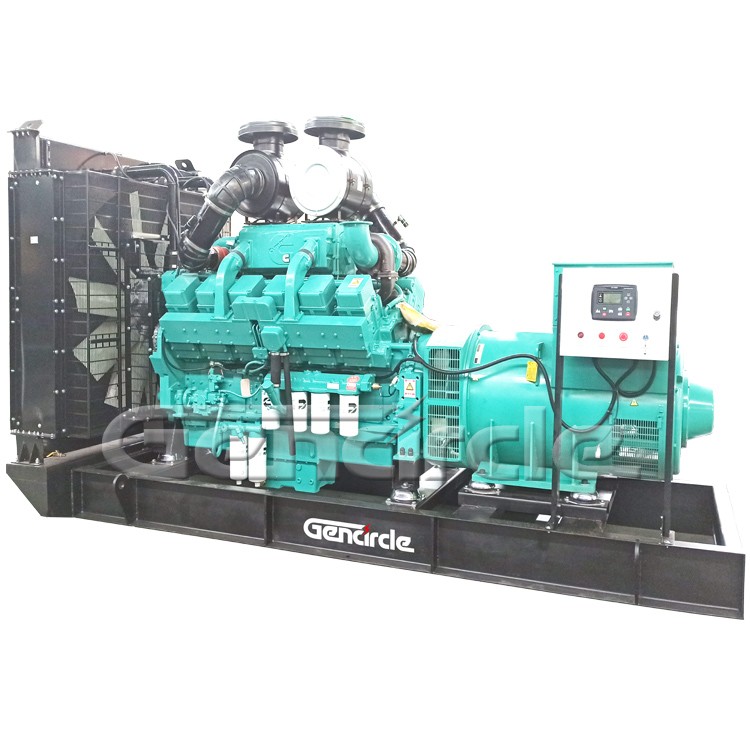

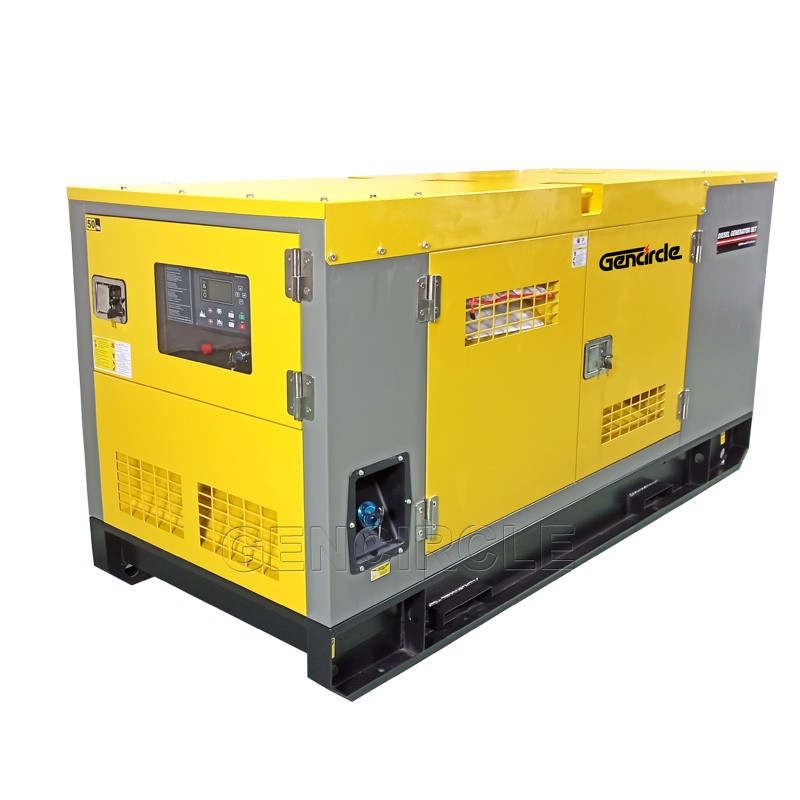

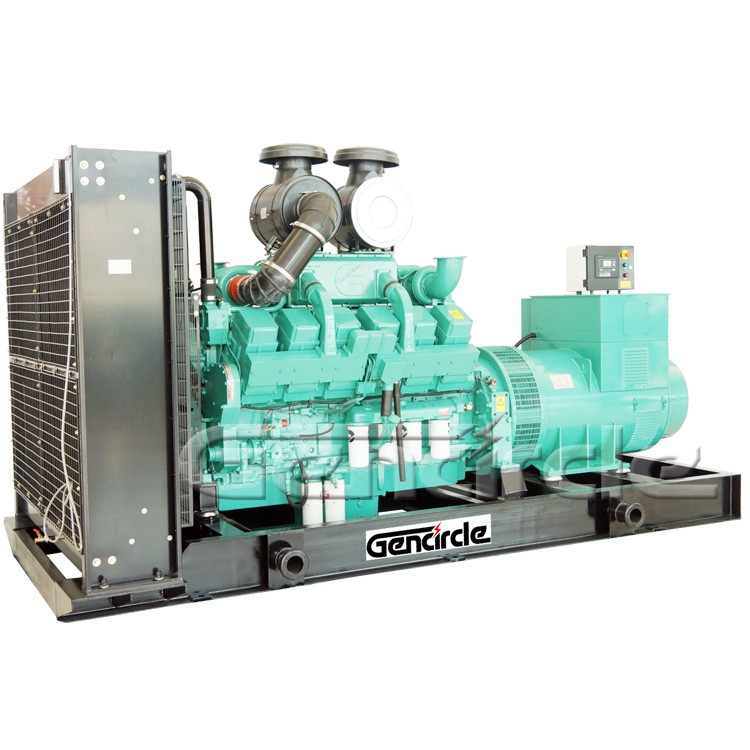

Diesel generator set Silent / Soundproof type / Open type / Trailer type

Safety – Stability – Economy - Sufficient power

1. Our cooperate with famous diesel engine –Powered by Cummins Perkins Deutz Doosan volvo shanghai weichai Isuzu Yanmar Kubota Honda Yamaha Ricardo Yuchai LovoL Fawde Quanchai Yangdong Mitsubishi.

2. Equipped with famous Brushless alternator – Optional Stamford, Leroy Somer, Mecc alte.

3. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working

4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,

5. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM

6. Equipped with high density sound-absorbing material -- sound insulation, fireproofing

7. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.

8. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.

9. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker

10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.

11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance

12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.

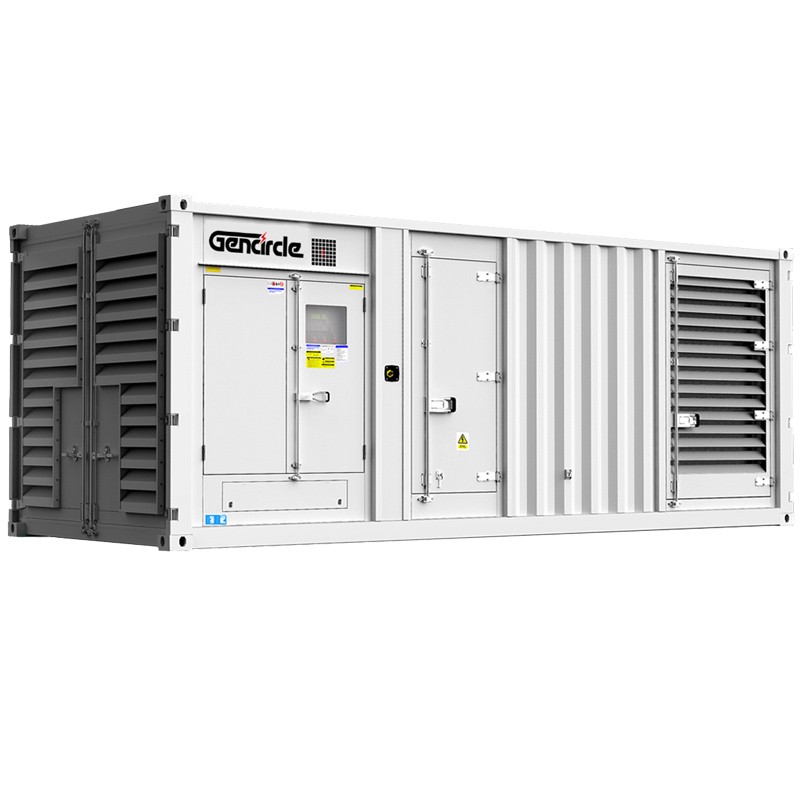

13. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.

Diesel generator set Silent / Soundproof type / Open type / Trailer type

Our gensets compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard

Prime output power: 2KVA - 4000 KVA

Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc.

Phase/connecting: 3 phase, 4wire.

Rated frequency: 50Hz@1500rpm, 60Hz@1800rpm

Alternator excited type: Brushless, self excited or PMG

Insulation: Class H

Protection: IP21~IP23

Voltage regulation: AVR automatic control 1%

Altitude above sea level: ≤1000 meters

Ambient air temperature: ≤40°C

Relative air humidity: ≤ 90%

Warranty policy

Our product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator.

Specifications:

Model	400V / 50Hz / 1500RPM				Cummins Diesel Engine				Alternator
	Standby output		Prime Output		Model	No. of Cylinder	Displacement	Bore×Stroke	Stamford
	KVA	KW	KVA	KW	Model	No. of Cylinder	(L)	(MM)	Stamford
C-22	22	18	20	16	4B3.9-G1	4L	3.9	102ˣ120	SOL2-G
C-28	28	22	25	20	4B3.9-G1	4L	3.9	102ˣ120	SOL2-M
C-33	33	26	30	24	4BT3.9-G1	4L	3.9	102ˣ120	S0L2-P
C-41	41	33	38	30	4BT3.9-G1	4L	3.9	102ˣ120	S1L2-K
C-55	55	44	50	40	4BTA3.9-G2	4L	3.9	102ˣ120	S1L2-R
C-66	66	53	60	48	4BTA3.9-G11	4L	3.9	102ˣ120	S1L2-Y
C-80	80	64	73	58	4BTA3.9-G11	4L	3.9	102ˣ120	UCI224F
C-94	94	75	85	68	6BT5.9-G1	6L	5.9	102ˣ120	UCI224G
C-110	110	88	100	80	6BT5.9-G1	6L	5.9	102ˣ120	UCI274C
C-115	115	92	105	84	6BT5.9-G2	6L	5.9	102ˣ120	UCI274D
C-125	125	100	114	91	6BTA5.9-G2	6L	5.9	102ˣ120	UCI274D
C-143	143	114	130	104	6BTAA5.9-G2	6L	5.9	102ˣ120	UCI274E
C-165	165	132	150	120	6BTAA5.9-G12	6L	5.9	102ˣ120	UCI274F
C-176	176	141	160	128	6CTA8.3-G1	6L	8.3	114ˣ135	UCI274F
C-200	200	160	175	140	6CTA8.3-G1	6L	8.3	114ˣ135	UCI274G
C-220	220	176	200	160	6CTAA8.3-G2	6L	8.3	114ˣ135	UCI274H
C-250	250	200	225	180	6LTAA8.9-G2	6L	8.3	114ˣ135	UCDI274J
C-275	275	220	250	200	6LTAA8.9-G3	6L	8.3	114ˣ145	UCDI274K
C-275	275	220	250	200	MTA11-G2	6L	10.8	125ˣ147	UCDI274K
C-275	275	220	250	200	NT855-GA	6L	14	140ˣ152	UCDI274K
C-300	300	240	270	216	6LTAA9.5-G3	6L	9.5	116.5ˣ148	S4L1D-C
C-313	313	250	275	220	MTAA11-G3	6L	10.8	125ˣ147	S4L1D-D
C-344	344	275	313	250	MTAA11-G3	6L	10.8	125ˣ147	S4L1D-E
C-350	350	280	320	256	6LTAA9.5-G1	6L	9.5	116.5ˣ148	S4L1D-E
C-350	350	280	313	250	NTA855-G1B	6L	14	140ˣ152	S4L1D-E
C-385	385	308	350	280	NTA855-G2A	6L	14	140ˣ152	S4L1D-E
C-413	413	330	375	300	QSNT-G3	6L	14	140ˣ152	S4L1D-F
C-413	413	330	375	300	NTAA855-G7	6L	14	140ˣ152	S4L1D-F
C-440	440	352	400	320	QSNT-G3	6L	14	140ˣ152	S4L1D-F
C-440	440	352	400	320	6ZTAA13-G2	6L	13	130ˣ163	S4L1D-F
C-460	460	368	438	350	6ZTAA13-G4	6L	13	130ˣ163	S4L1D-G
C-500	500	400	450	360	QSZ13-G2	6L	13	130ˣ163	S4L1D-G
C-500	500	400	450	360	KTA19-G3	6L	18.9	159ˣ159	S4L1D-G
C-550	550	440	500	400	QSZ13-G3	6L	13	130ˣ163	S5L1D-C
C-550	550	440	500	400	KTA19-G4	6L	18.9	159ˣ159	S5L1D-C
C-633	633	506	575	460	KTAA19-G6	6L	18.9	159ˣ159	S5L1D-E
C-650	650	520	585	468	KTA19-G8	6L	18.9	159ˣ159	S5L1D-E
C-688	688	550	625	500	QSK19-G4	6L	18.9	159ˣ159	HCI544FS
C-715	715	572	650	520	QSK19-G4	6L	18.9	159ˣ159	S5L1D-F
C-800	800	640	725	580	KTA38-GA	12V	37.8	159ˣ159	S5L1D-H
C-825	825	660	750	600	KTA38-G2	12V	37.8	159ˣ159	S5L1D-H
C-880	880	704	800	640	KTA38-G2B	12V	37.8	159ˣ159	S6L1D-C
C-1000	1000	800	910	728	KTA38-G2A	12V	37.8	159ˣ159	S6L1D-D
C-1100	1100	880	1000	800	KTA38-G5	12V	37.8	159ˣ159	S6L1D-E
C-1250	1250	1000	1125	900	KTA38-G9	12V	37.8	159ˣ159	S6L1D-G
C-1375	1375	1100	1250	1000	QSKTA38-G5	12V	37.8	159ˣ159	S6L1D-H
C-1375	1375	1100	1250	1000	KTA50-G3	16V	50.3	159ˣ159	S6L1D-H
C-1540	1540	1232	1400	1120	KTA50-G8	16V	50.3	159ˣ159	PI734B
C-1650	1650	1320	1500	1200	KTA50-GS8	16V	50.3	159ˣ159	PI734C
