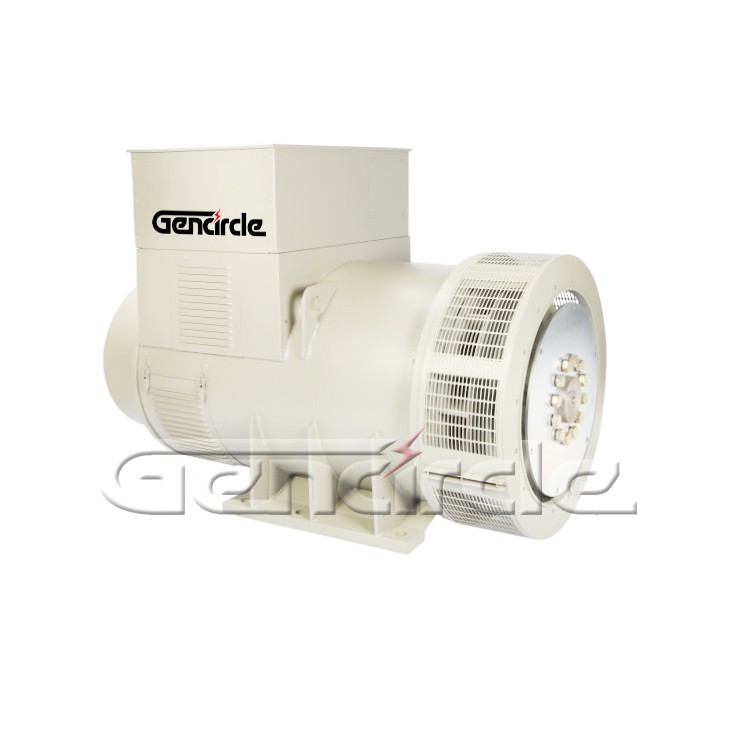

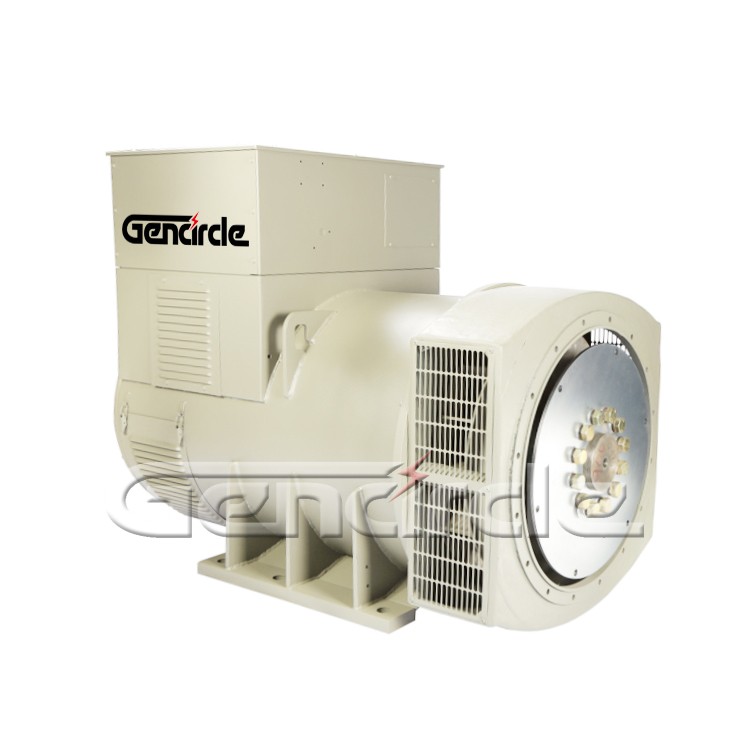

1120KW- 2000KW Brushless Alternator

Output Power: 600KW ~ 1000KW
Body Frame : 634 Frame
Excitation system: Brushless excitation with AVR
Windings: 2/3 pitch winding and 100% copper
Insulation grade: H class
Standard interface: SAE
Optional: Single bearing or Double bearing
Characteristic: Global advanced technology and Perfect replacement other brand

WP Series Brushless Synchronous Alternatorare made adopted global advanced technology and according to the standards of GB755、IEC60034、NEMA etc. The alternators have standard features: voltage adjust, stability adjust, under frequency roll off, over exciting protection, low radio interference, etc. The stators are 2/3 pitch winding, the rotors are fixed sequential damper winding. The stator core is designed landler taking advantage of CAD, ensuring a very low waveform distortion. ”H” class insulation system is provided the high build required for static windings and the high mechanical strength required for rotating components.


ELECTRIC FEATURES

Insulation Class H

All regulatory components are made up with special materials and are immersed in lacquer by peculiar tech. Vanish and colophony materials are develop to strengthen the processing and machinery intensity of windings and revolving parts for protecting the alternator work under corrosive environment.


Winding and electric features

2/3 pith winding design can effectively eliminate the third harmonic wave(3th.9th,15th) of the voltage ,which is the best design of UPS for nonlinear load .Connected with the network in parallel, the structure can restrain excessive currents in the midline. This and the 2/3 pitch help to check the wave distortion and output voltage.


Phone interference and Radio interference

THF (defined by 40thpart of BS4999) <2%.TIF<50

Brushless apparatus and quality AVR ensure little radio interference in transmission. RFI noise filter is also available.


Manufacturing Standard

GB755, BS 5000, VDE 0530, NEMA MG1-22, IEC34


Warranty policy

Our product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provide cost spare parts maintenance of alternator.


Specifications:

MODEL3-PHASE 50Hz /1500RPM 380V-440V 3-PHASE 60Hz /1800RPM 416V-480V Packaging Data
(KVA)(KW)(KVA)(KW)LXWXHkg
WP164A8.16.59.67.749X45X5886
WP164B118.81310.449X45X5893
WP164C13.510.81612.849X45X5898
WP164D1612.81915.149X45X58108
WP184D20162318.555X49X58117
WP184E22.518282255X49X58133
WP184FS2520292363X49X58143
WP184F27.522332663X49X58151
WP184G31.325352863X49X58173
WP184H37.5304435.470X49X70188
WP184J40324737.870X49X70199
WP224C42.534504078X49X84233
WP224D5040604878X49X84249
WP224E6048685486X55X84277
WP224F72.558846786X55X84313
WP224G8568947590X55X84355
WP274C100801139088X63X94371
WP274D1149112510088X63X94402
WP274D112510013110598X63X94430
WP274E14011216012898X63X94460
WP274F16012818114598X63X94513
WP274G180144205164104X63X94563
WP274H200160238190108X63X94615
WP274J225180269215115X63X94623
WP274K250200290232115X63X94688
WP444C250200281225122X70X104800
WP444D295236338270122X70X104878
WP444E325260358286122X70X104920
WP444FS380304413330133X70X1041088
WP444F400320445356133X70X1041103
WP544C450360525420138X80X1151213
WP544D500400575460138X80X1151363
WP544ES563450625500138X80X1151410
WP544E600480681545138X80X1151459
WP544FS625500700560149X80X1151580
WP544F670536738590149X80X1151632
WP634B750600810648178X97X1331866
WP634C800640865692178X97X1331950
WP634D910728986789178X97X1332002
WP634E10008001083866178X97X1332142
WP634F11309041204963178X97X1332375
WP634G1250100013101048186X97X1332721
WP734B1400112015251220186X105X1492790
WP734C1550124017051364186X105X1493025
WP734D1650132018151452215X101X1593320
WP734E1900152020701656215X101X1593585
WP734F2080166423451876220X101X1593850
WP734G2250180024201936220X101X1594090
WP734H2500200026692135220X101X1594580
