FUJI RICARDO Diesel Generator Set

Output: 10kVA - 1100KVA
Engine: Powered by FUJI RICARDO Diesel engine
Alternator: Stamford, Leroy Somer, Mecc alte
Frequency: 50Hz/60Hz
Voltage: 220/380V, 230/400V, 240/416V (optional other voltage)
Frmae: optional Open type / Silent type / Container type / Trailer type
Standard: ISO, CE
Control system: Deep sea, Smartgen , ComAp

Reliability quality and performance

Famous diesel engine

Warranty on global

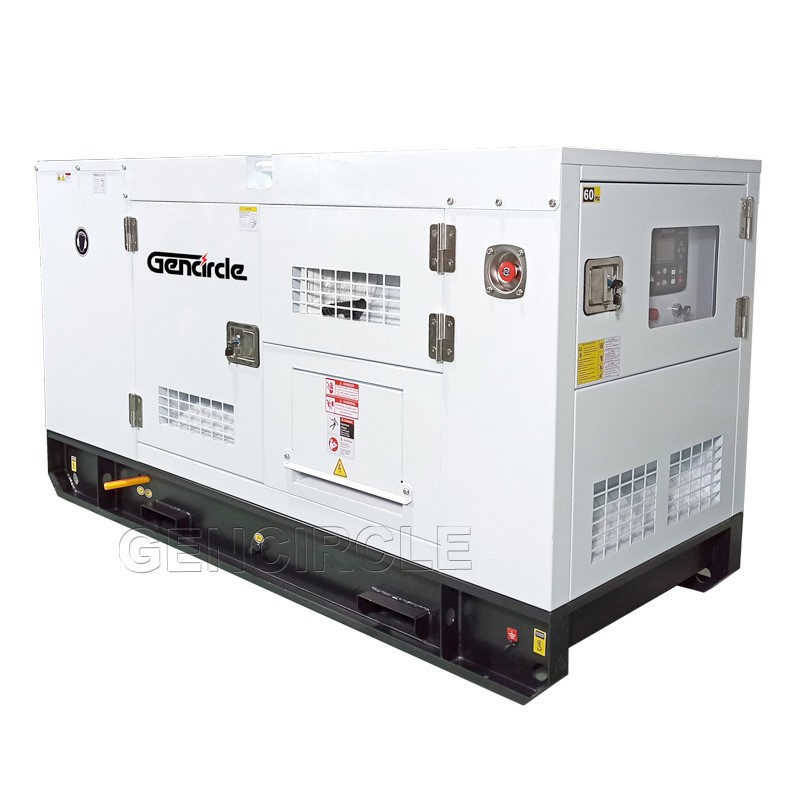

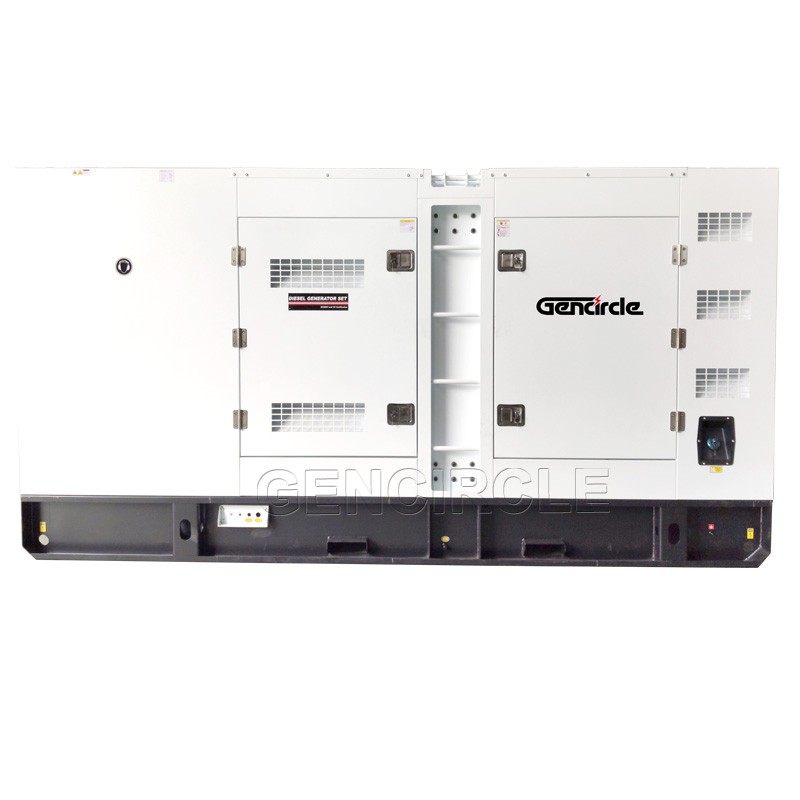

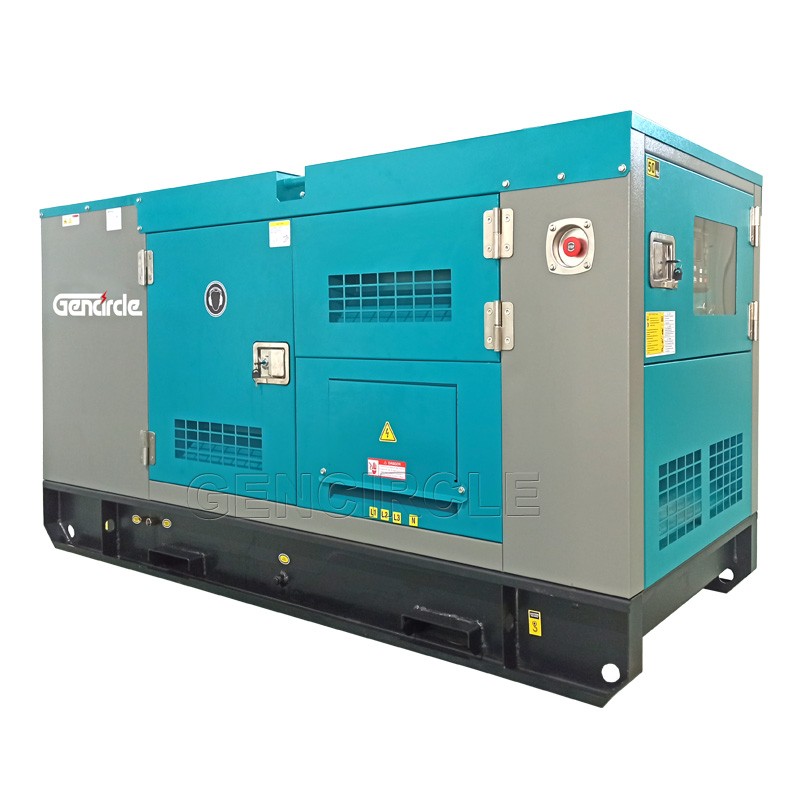

Diesel generator set Silent / Soundproof type / Open type / Trailer type

Safety – Stability – Economy - Sufficient power

1. Our cooperate with famous diesel engine –Powered by Cummins Perkins Deutz Doosan volvo shanghai weichai Isuzu Yanmar Kubota Honda Yamaha Ricardo Yuchai LovoL Fawde Quanchai Yangdong Mitsubishi.

2. Equipped with famous Brushless alternator – Optional Stamford, Leroy Somer, Mecc alte.

3. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working

4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,

5. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM

6. Equipped with high density sound-absorbing material -- sound insulation, fireproofing

7. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.

8. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.

9. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker

10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.

11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance

12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.

13. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.

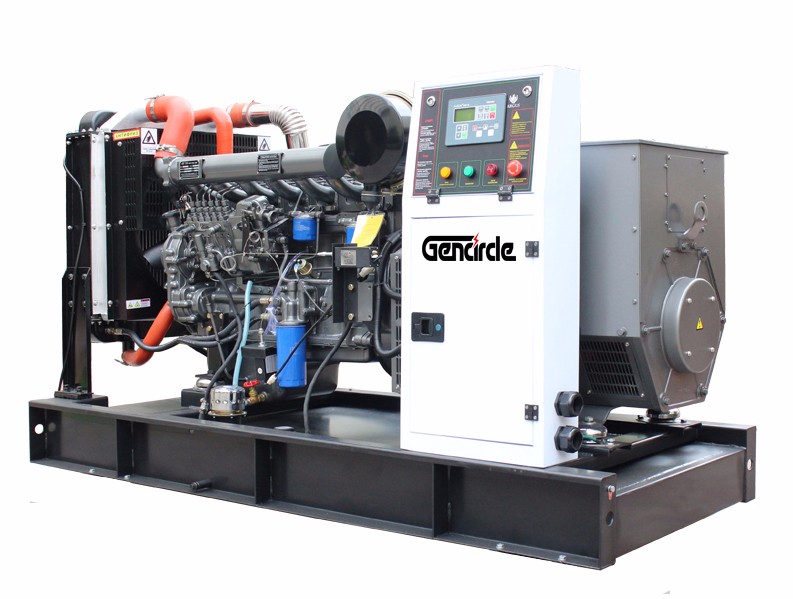

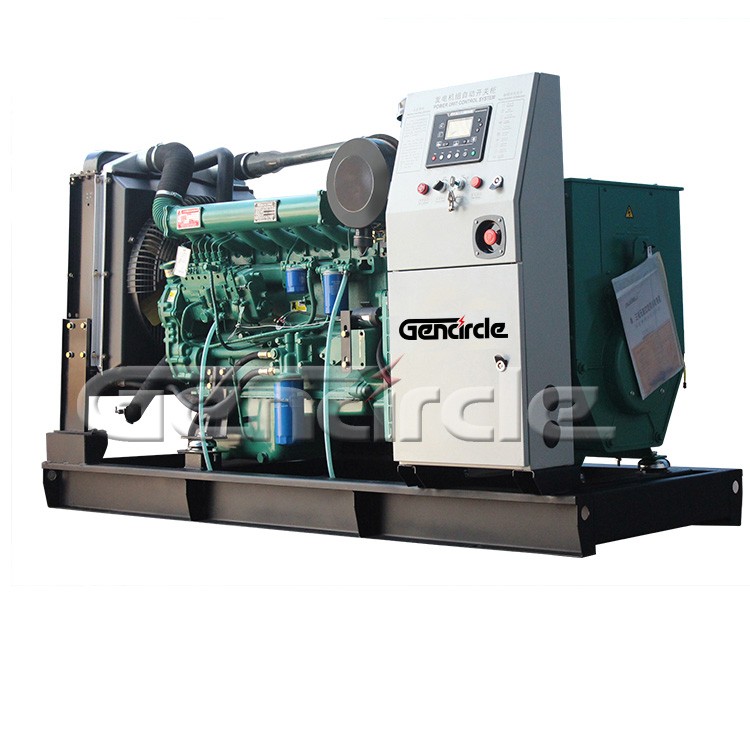

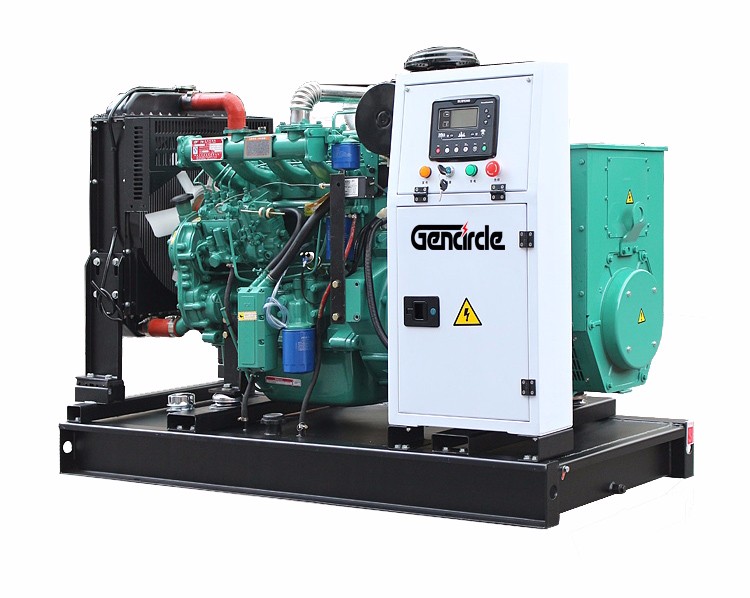

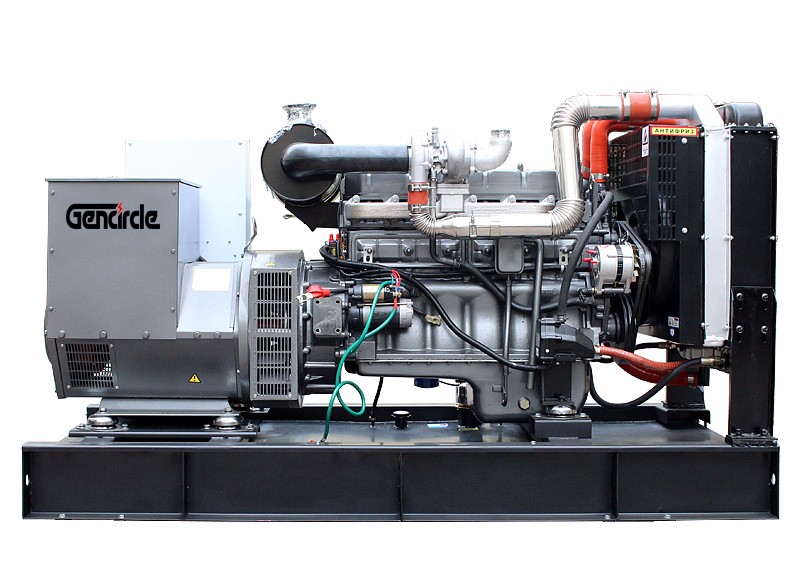

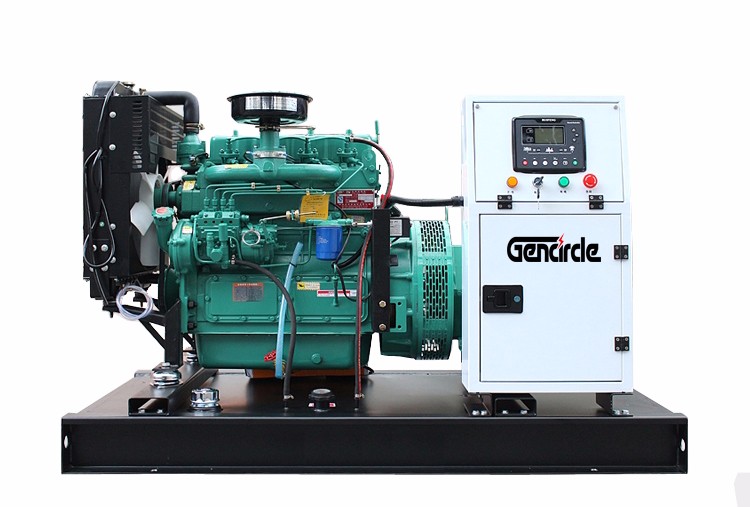

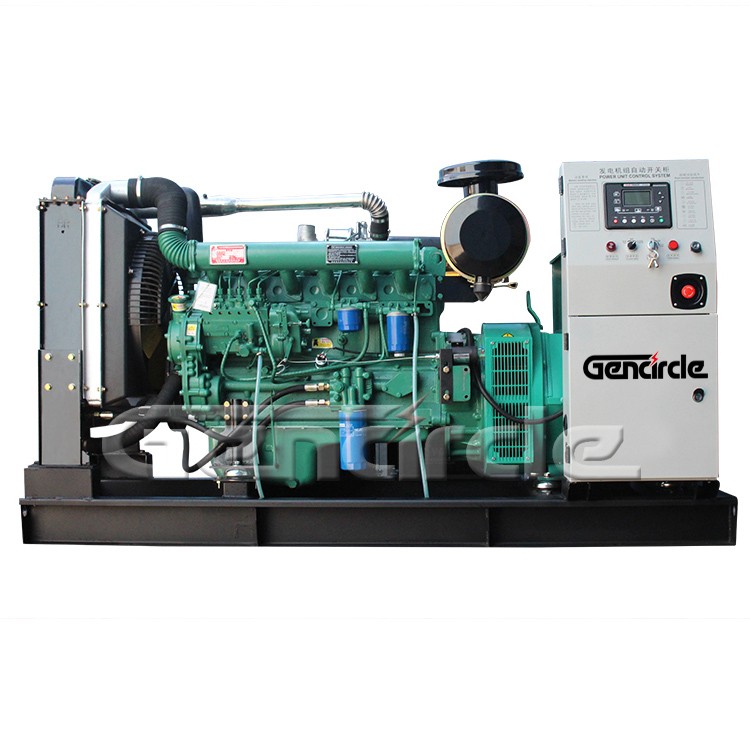

Diesel generator set Silent / Soundproof type / Open type / Trailer type

Our gensets compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard

Prime output power: 2KVA - 4000 KVA

Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc.

Phase/connecting: 3 phase, 4wire.

Rated frequency: 50Hz@1500rpm, 60Hz@1800rpm

Alternator excited type: Brushless, self excited or PMG

Insulation: Class H

Protection: IP21~IP23

Voltage regulation: AVR automatic control 1%

Altitude above sea level: ≤1000 meters

Ambient air temperature: ≤40°C

Relative air humidity: ≤ 90%

Warranty policy

Our product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator.

Specifications:

Model	400V / 50Hz / 1500RPM				FUJI RICARDO Diesel Engine					Alternator
	Standby Output		Prime Output		Model	Engine type		Displacement	Bore×Stroke	Brushless
	KVA	KW	KVA	KW	Model	No. of Cylinder	Governor	(L)	(MM)	Brushless
GF-11	11	8.8	10	8	K2105D	L2	Mechanical	1.63	105×115	WP164B
GF-14	14	11	13	10	K2105D	L2	Mechanical	1.63	105×115	WP164C
GF-17	17	13.2	15	12	K4100D	L4	Mechanical	3.61	100×115	WP164D
GF-21	21	16.5	19	15	K4100D	L4	Mechanical	3.61	100×115	WP184D
GF-25	25	20	23	18	K4100D	L4	Mechanical	3.61	100×115	WP184E
GF-28	28	22	25	20	K4100D	L4	Mechanical	3.61	100×115	WP184FS
GF-33	33	26	30	24	K4102D	L4	Mechanical	3.76	102×115	WP184G
GF-41	41	33	38	30	K4100ZD	L4	Mechanical	3.61	100×115	WP184H
GF-45	45	36	40	32	K4102ZD	L4	Mechanical	3.76	102×115	WP184J
GF-55S	55	44	50	40	ZH4105ZLD	L4	Mechanical	4.33	105×125	WP224D
GF-55	55	44	50	40	R4105ZD	L4	Mechanical	4.33	105×125	WP224D
GF-70	69	55	63	50	R4105AZD	L4	Mechanical	4.5	105×130	WP224E
GF-83	83	66	75	60	R4108IZD	L4	Mechanical	4.95	108×135	WP224F
GF-96	96	77	88	70	R4108IZLD	L4	Mechanical	4.95	108×135	WP224G
GF-100	96	77	88	70	R6105ZD	L6	Mechanical	6.49	105×125	WP224G
GF-110	110	88	100	80	R6105AZLD	L6	Mechanical	6.75	105×130	WP274C
GF-125	125	100	113	90	R6105AZLD	L6	Mechanical	6.75	105×130	WP274D
GF-138	138	110	125	100	R6105IZLD	L6	Mechanical	7.01	105×135	WP274D1
GF-165	165	132	150	120	R6108ZLD	L6	Mechanical	7.41	108×135	WP274F
GF-206	206	165	188	150	R6113ZLD	L6	Mechanical	7.82	113×130	WP274G
GF-250	250	200	225	180	R6126ZLD	L6	Electric	9.73	126X130	WP274J
GF-275	275	220	250	200	R6126ZLD-1	L6	Electric	9.73	126X130	WP274K
GF-330	330	264	300	240	WT12D-308E	L6	Electric	11.596	126×155	WP444D
GF-358	358	286	325	260	WT13-330DE	L6	Electric	11.596	126×155	WP444E
GF-413	413	330	375	300	WT13-360DE	L6	Electric	11.596	126×155	WP444FS
GF-440	440	352	400	320	WT13A-390DE	L6	Electric	11.596	126×155	WP444F
GF-500	500	400	450	360	K25G829D	12V	Electric	26.6	135×155	WP544C
GF-550	550	440	500	400	K25G829D	12V	Electric	26.6	135×155	WP544D
GF-688	687.5	550	625	500	K29G1120D	12V	Electric	28.7	138×160	WP544FS
GF-750	750	600	670	536	K29G1120D	12V	Electric	28.7	138×160	WP544F
GF-825	825	660	750	600	K29G1210D	12V	Electric	29.6	138×165	WP634B
GF-880	880	704	800	640	K33G1310D	12V	Electric	31.4	140×170	WP634C
GF-1000	1000	800	910	728	K33G1500D	12V	Electric	31.15	138×168	WP634D
GF-1100	1100	880	1000	800	K33G1600D	12V	Electric	31.15	138×168	WP634E
