Brand: GENCIRCLE Power
2 inch, 3 inch, 4 inch

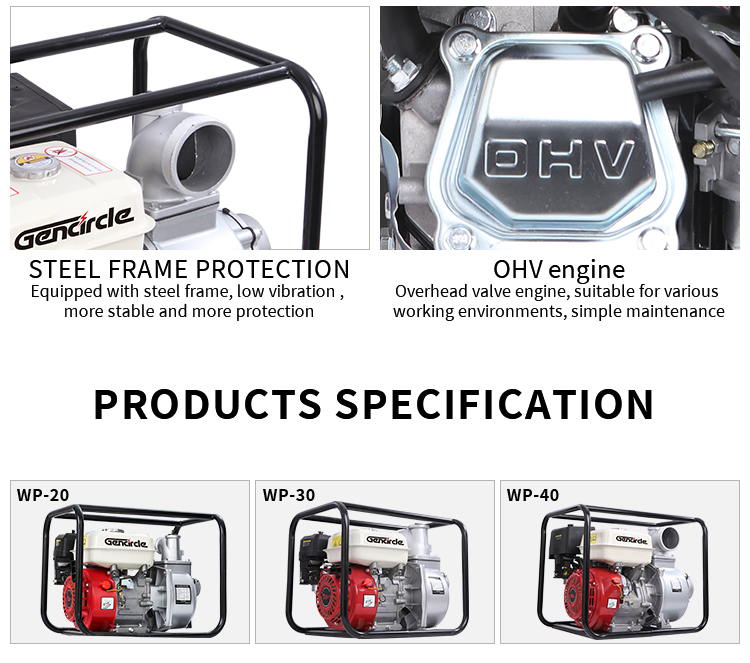

Protect Frame

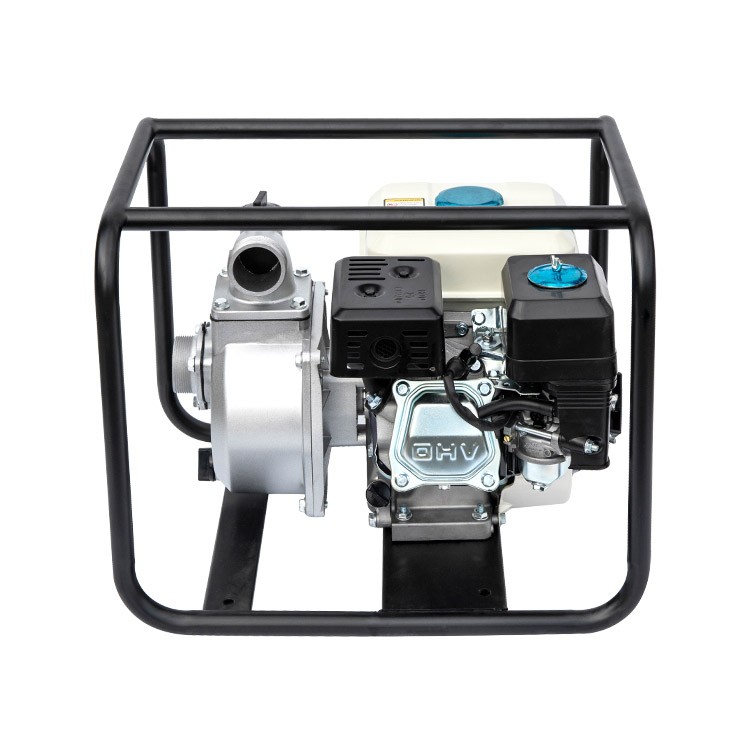

OHV Single cylinder engine

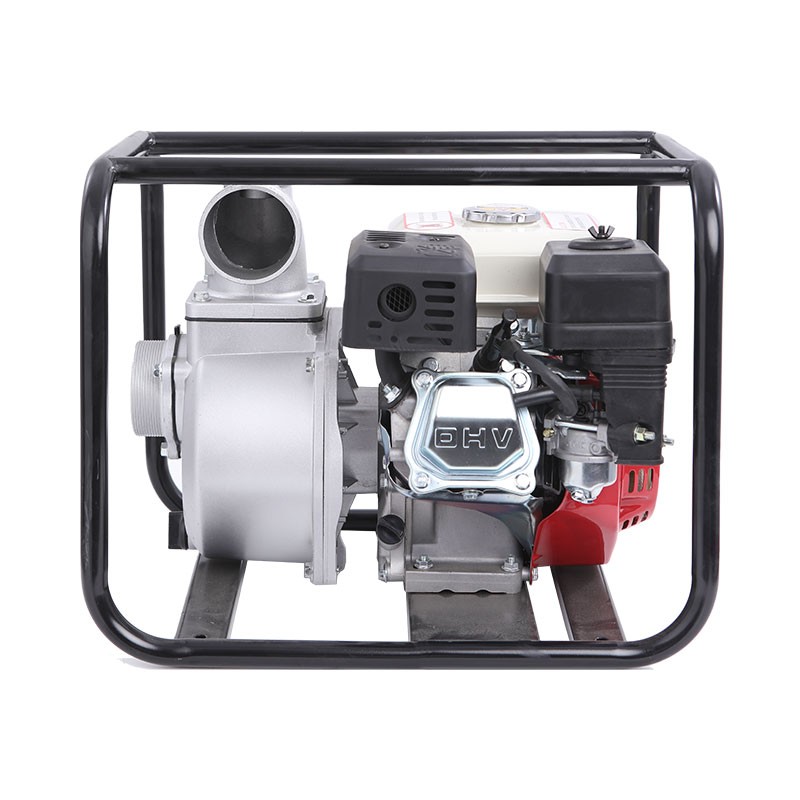

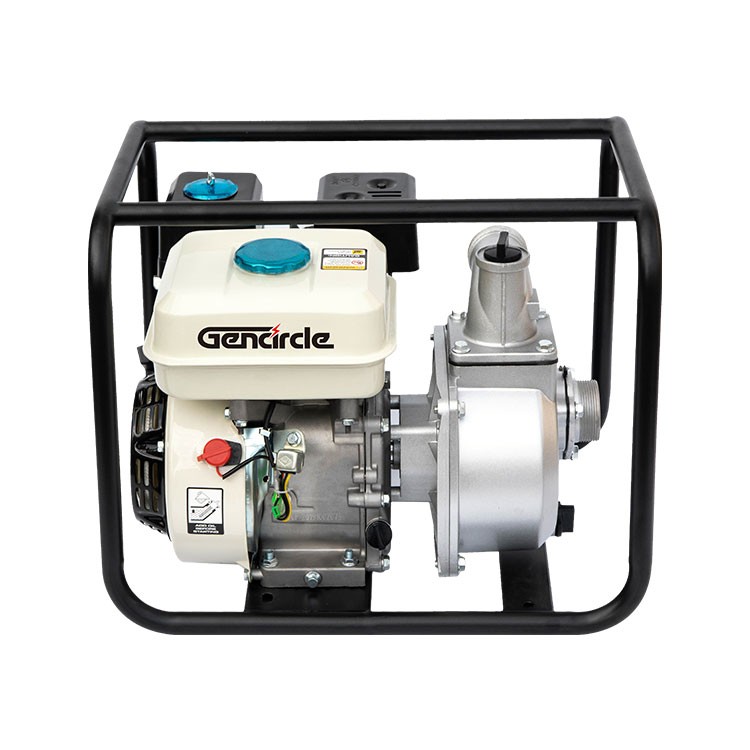

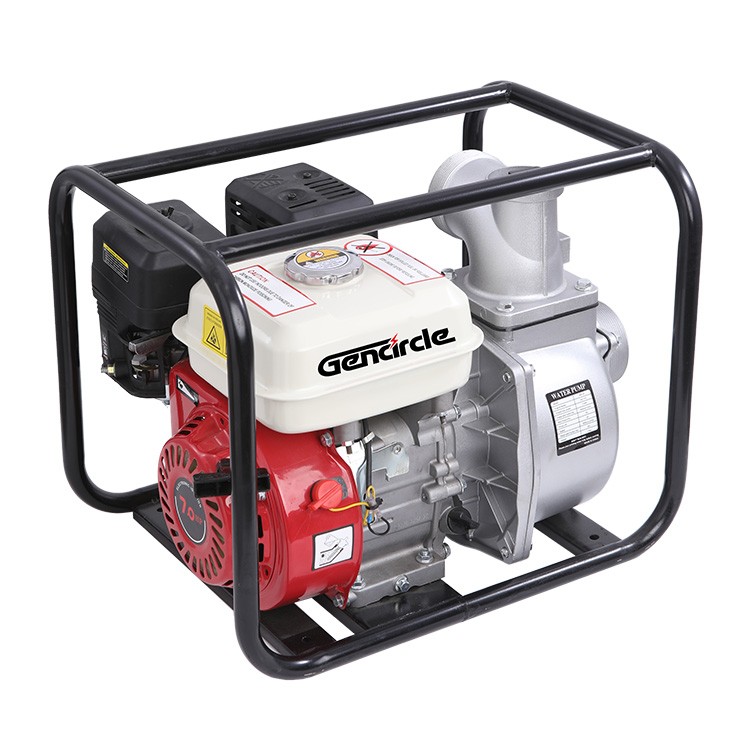

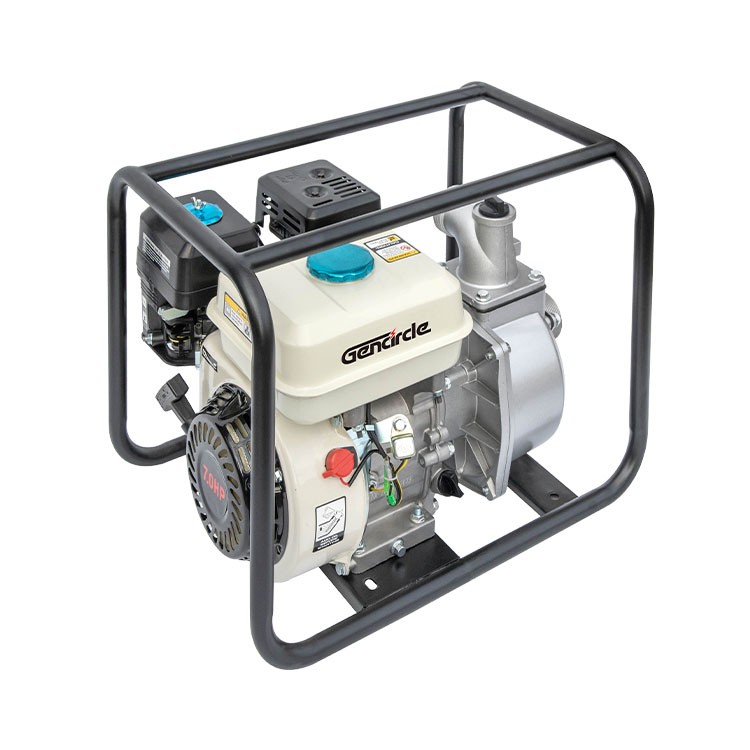

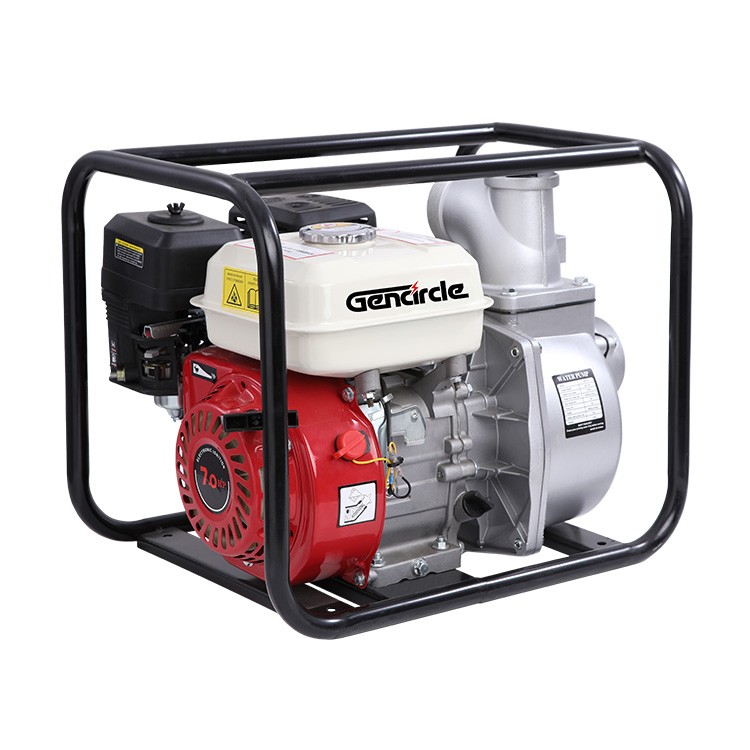

Product description: Gasoline Water Pump, 2 inch, 3 inch, 4 inch, Manual start, Carton packing
■ Neat and economical for classical design.

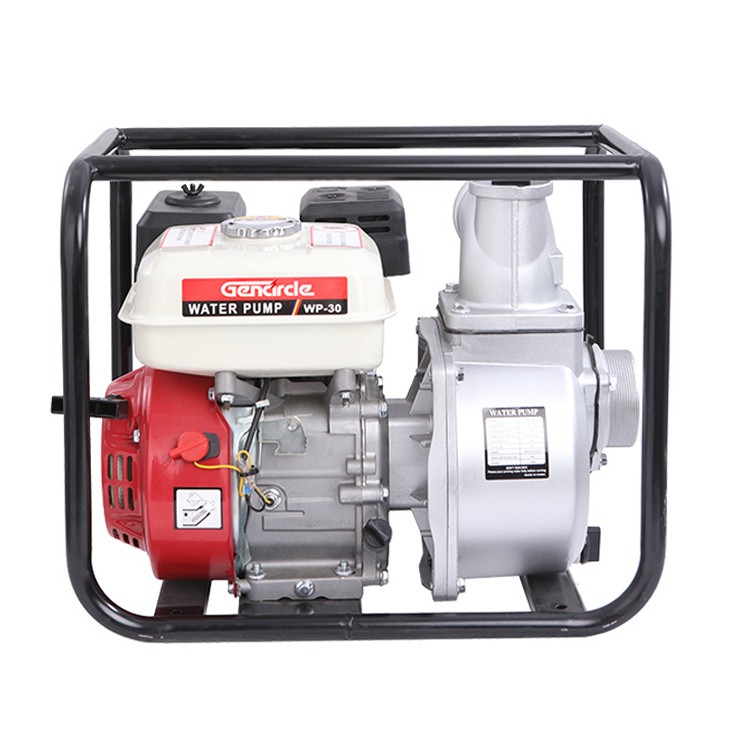

| Model | WP-20 | WP-30 | WP-40X | WP-40 |
| Type | Gasoline water pump | Gasoline water pump | Gasoline water pump | Gasoline water pump |
| Suction & discharge port diameter(mm)(in) | 50 (2 inch) | 80 (3 inch) | 100 (4 inch) | 100 (4 inch) |
| Flow (m³/h) | 30 | 55 | 60 | 85 |
| Lift total (m) | 30 | 28m | 28m | 25m |
| Self-priming time(s/4m) | 90 | 120 | 120 | 180 |
| Max.suction head(m) | 8 | 8 | 8 | 8 |
| Engine model | GX160 | GX200 | GX210 | GX460 |
| Engine power (Hp) | 5.5HP | 6.5HP | 7.0HP | 16HP |
| Rated speed(r/min) | 3600 | 3600 | 3600 | 3600 |
| Displacement(cm3) | 163 | 196 | 212 | 459 |
| Fuel Tank（L） | 3.6 | 3.6 | 3.6 | 6.5 |

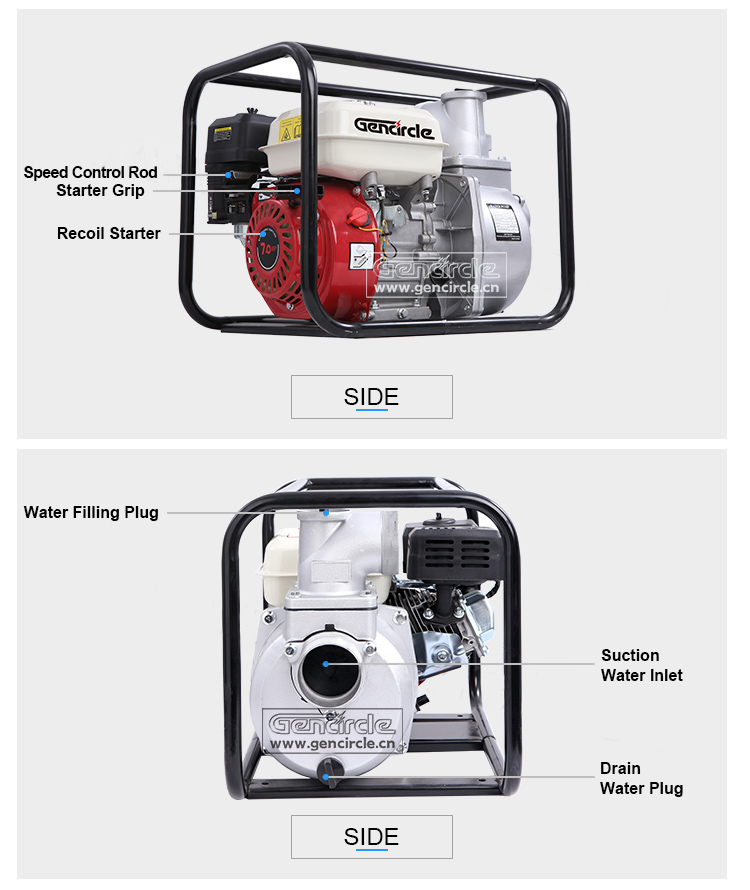

| Starter system | Recoil starter | Recoil starter | Recoil starter | Recoil starter |
| Weight(kg) | 23 | 24 | 26 | 43 |
| Dimension (L×W×H)mm | 520×380×435 | 520×380×435 | 520×380×435 | 640×460×530 |
