Mobile Light Tower Generator Set

Powered by Perkins, Kubota,Yanmar
Light power 4x1000Watts
height of mast: 9.0M
Manual / Auto mast
Product description: Mobile Light Tower Generator Set Stable performance high safety high adaptability.

Reliability quality and performance

Famous diesel engine

Warranty on global

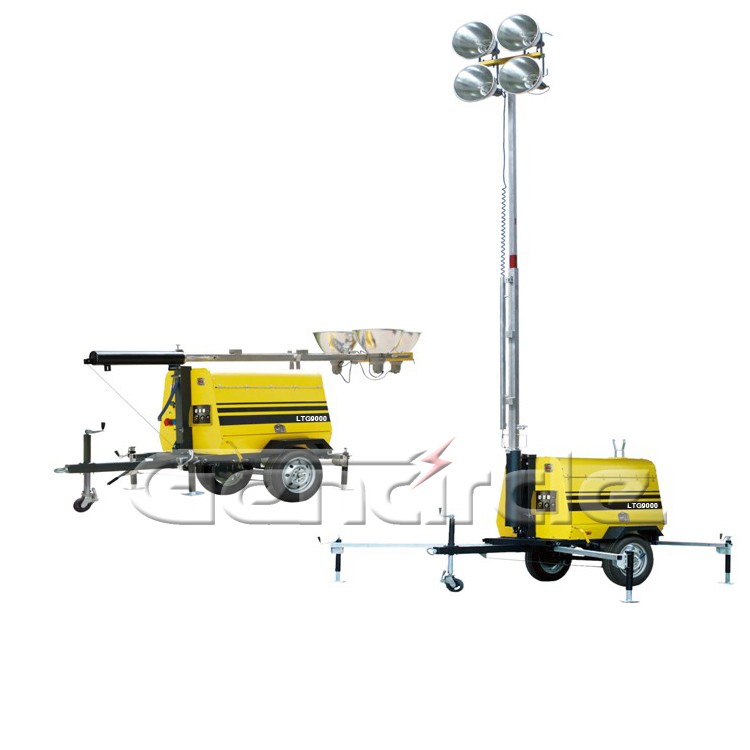

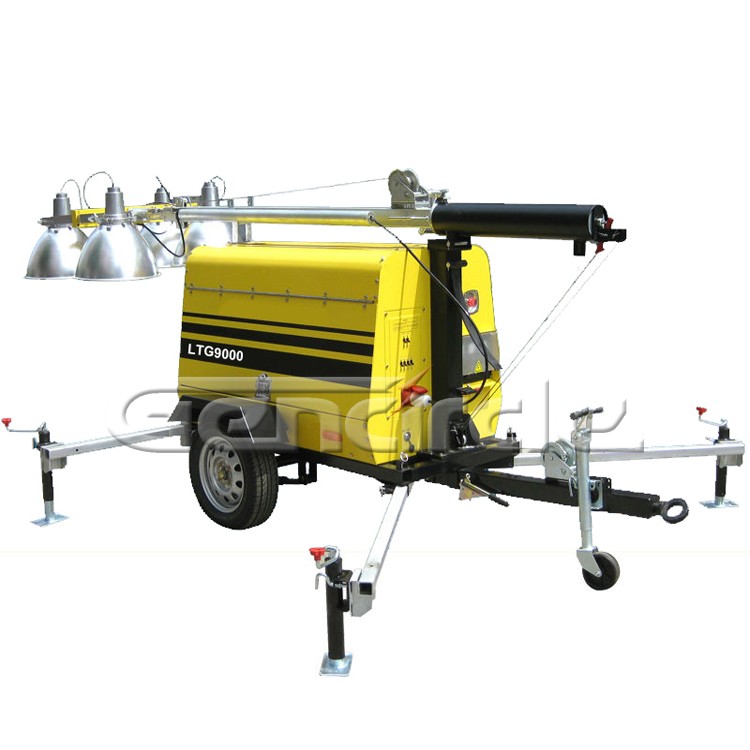

Portable Mobile Light Tower Generator Set


Stable performance high safety high adaptability,

Light have High lumen and energy conservation,

Equipped with world famous engine and alternator

All-weather canopy and manual / Auto mast

Wind-proof frame design

Intelligent control system, Alarm system

Equipped 5* supporting leg and with brake system

Safety – Stability – Economy -  Reliability Power

1. Our cooperate with famous diesel engine –Powered by Cummins Perkins Deutz Doosan volvo shanghai weichai Isuzu Yanmar Kubota Honda Yamaha Ricardo Yuchai LovoL Fawde Quanchai Yangdong Mitsubishi.

2. Equipped with famous Brushless alternator – Optional Stamford, Leroy Somer, Mecc alte.

3. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working

4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,

Manufacturing Standard

GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34。

Product Warranty policy

Our product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.


Maximum height of mast9m
ElevationMechanical / Electric
Raising/lowering mastWinch / Button
Turning angle358 degrees
Stage3 ( 2-3 is optional)
Total power of lamps4x1,000Watts
Type of lampMetal halide
Light capacity440000 lumen
Voltages120, 220, 230, 240Volts
Frequency50Hz / 60Hz
Lifetime of lamp5,000hours
Working temperature85°C
Protection gradeIP54
Engine brandPERKINS  /  YANMAR / Kubota
Rated power7.2KW 50Hz  / 8KW  60Hz
Engine model403D-11G /  3TNV82A-GGE
Intake systemNatural Aspiration
Engine speed50Hz 1500rpm, 60Hz 1800rpm
TypeVertical 3-cylinder, Water cooled
Starting systemElectric
AlternatorSTAMFORD/Mecc alte
Fuel tank capacity100L
Fuel consumption at 100% load2.0L/H
Max continuous running time50 Hours
Control systemDigital control panel
Power Outlets2
Tow hitchRing / Ball hitch
Stabilier Supports5 pcs * Manual
Wheel Size16'
wheel Qty2 pcs
Anti-wind capacity10
Brakes SystemManual
CanopyWith two doors access for easy maintenance , Detachable Roof
Storage2650 × 1300 × 2450mm
