20Ft Container Diesel Generator Set

Container type Diesel Generator Set

Gencircle supply container type generator set is design in accordance with ISO/TC104 standard size, rational construction, to make sure the generator set will not be damaged due to under high pressure in transport, and is suitable for ship transportation. Wecan supply the 20’ container, 40’container, and widen or heighten container type. They are divided into the normal type and silent type. This series generator set can be easily moved to the desired location, can run under the most demanding working conditions. These gensets are all with high quality and reliable diesel engine as a driving source, and with the International quality brushless synchronous alternator.

Performance feature：

1. Accord with international standard container size, easy to transport

2. Keep standard container main body structure, Sturdy And Durable

3. High degree of protection, suit for used under the bad environment

4. more reasonable design in exhaust, to ensure continuous power supply of the generator set.

Jet power container type generator set can divide into 20’ container type and 40’container type, The container type genset can be directly shipping as a standard container, greatly save transportation costs. The power below 1250kva, it use the 20 container type,and it’ll use 40’ container type if the genset power above 1250kva.

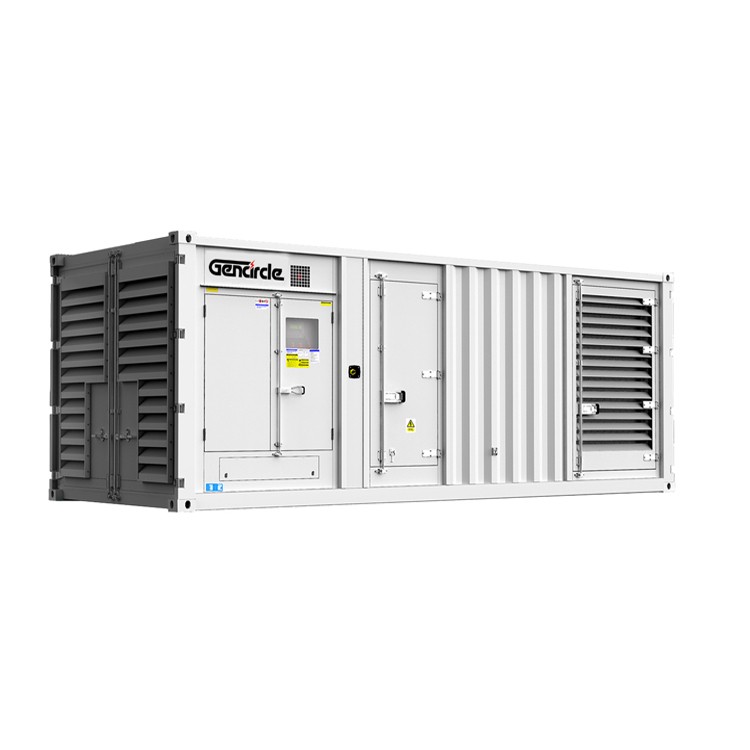

40’standard container type, as shown below:

Safety – Stability – Economy -  Reliability Power

1. Our cooperate with famous diesel engine  –Powered by Cummins Perkins Deutz Doosan volvo shanghai weichai Isuzu Yanmar Kubota Honda Yamaha Ricardo Yuchai LovoL Fawde Quanchai Yangdong Mitsubishi.

2. Equipped with famous Brushless alternator – Optional Stamford, Leroy Somer, Marathon, Mecc alte.

3. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working

4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,

6. Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard

7. Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc. other voltage is optional

8. Generator Phase and connecting: 3 phase, 4wire.

9. Rated frequency: 50Hz@1500rpm60Hz@1800rpm

10. Alternator excited type: Brushless, self excited or PMG optional

11. Alternator Insulation: Class H,Alternator Protection: IP21 ~ IP23

12. Voltage regulation: AVR automatic control 1%

13. Altitude above sea level:  ≤1000 meters,Ambient air temperature:  ≤40°C,Relative air humidity:  ≤ 90%

Controller System

1. DSE6020, DSE6120U, DSE7320 (AMF) model Standard control panel, including digital LED genset control model: HGM6120U,  DSE7320, DSE6020

2. Automatic transfer switch (ATS) and Automatic parallel operation system

Accessories

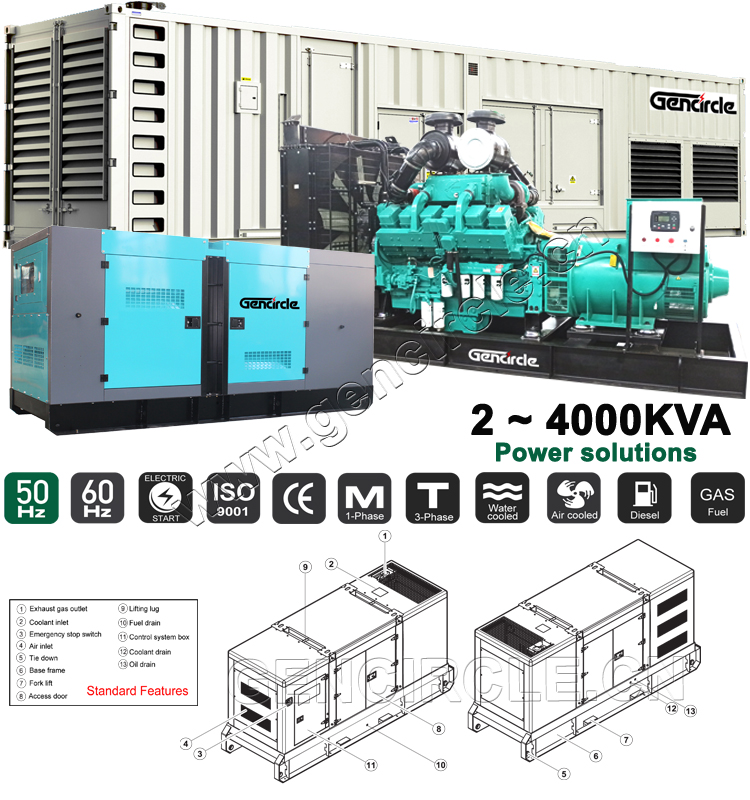

Standard accessories: Standard 50 radiator mounted on skid. Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wire, Standard tool kit, operation manual and Testing document

Manufacturing Standard

GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34。

Product Warranty policy

Our product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.
